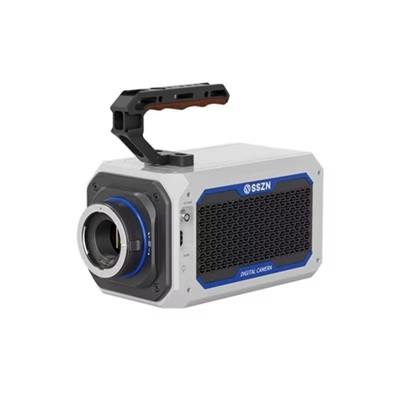

SH8-130

SH8-130

Max. Frame Rate: 1,100,000 FPS

Min. Exposure Time: 150 ns

PIV Interframe Time: ≥ 250 ns

Pixel Size: 20 μm

Standard Storage: 512GB / 1TB / 4TB

BSl image sensor Peak quantum efficiency ≥85%

Applications: Advanced Scientific Research, Defense & Security, Aerospace, etc.

Request a trial Join for comparison

Favorites Saved to favorites

  • SH8-130
  • SH8-130
  • SH8-130

    • Compliance: CE / KC / FCC

    Product Specification
    Model SH8-130
    Max. Resolution 1280×1024
    Full Frame Rate 30000FPS
    Max. Frame Rate 1100000FPS
    Min. Exposure Time 150ns
    Bit Depth 8bit/10bit/12bit
    Color Monochrome (M)
    Cell Size(μm) 20μm
    Data interface 10 Gigabit Ethernet compatible with 2.5Gbps 1Gbps
    Dynamic Range 60dB
    Analog Gain ×2、×4、×8
    Operating Temperature Standard -10~50℃ customizable large-range temperature version
    Heat dissipation mode Air Cooling
    Pluggable HDD Support
    Extended Memory /
    RAM 1TB/4TB/8TB(Optional)
    Lens Mount F Port [Adapt to E /EF (E-control) /C port]
    Power consumption DC20-32V，dual power supply
    Dimensions (excluding protrusion parts) 210D×125W×125H
    Weight Approx. 4 kg
