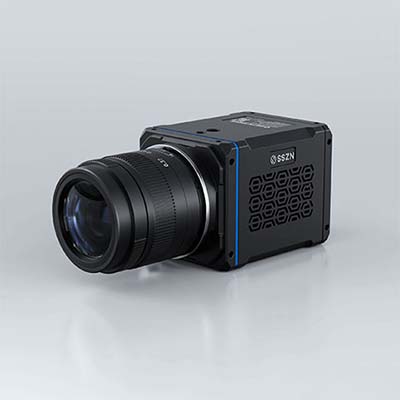

SH2-201

SH2-201

Full-frame resolution: 1920×1080

Full-frame shooting frame rate: 1200fps

Minimum exposure time: 100ns

PIV double exposure time: 150ns

Pixel size: 10μm

Request a trial Join for comparison

Favorites Saved to favorites

  • SH2-201
  • SH2-201

    • Compliance: KC / FCC

    Product Specification
    Model SH2-201
    Max. Resolution 1920×1080
    Full Frame Rate 1200FPS
    Max. Frame Rate 110000FPS
    Min. Exposure Time 100ns
    Bit Depth 8bit/10bit
    Color Monochrome (M) / Color (C)
    Cell Size(μm) 10μm
    Data interface 10GigE/GigE
    Dynamic Range 60dB
    Analog Gain ×2、×4、×8
    Operating Temperature Standard -10~50℃ customizable -40~65℃wide temperature range version
    Heat dissipation mode Air Cooling
    Pluggable HDD
    Extended Memory /
    RAM 64GB/256GB/1TB/2TB
    Lens Mount Optional( E mount or C mount)
    Power consumption DC24V，<30W
    Dimensions (excluding protrusion parts) 89D*72W*72H
    Weight 730g（E mount），680g（C mount）
