Front Page Scientific Imaging High-Speed Camera High-Speed HD Series SH6-202
Product Specification
Data Download
Customer Case
Related Products

Category

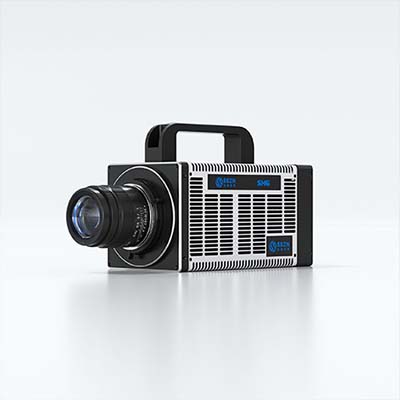

SH6-202

SH6-202

Maximum shooting speed: 14000FPS

Minimum exposure time: 1μs

Pixel size: 9μm

Dynamic range: 64dB

Data bandwidth: 40Gbps

Standard memory: 40GB/80GB/160GB/320GB optional

Expandable memory: 4TB/12TB/24TB optional

Application scenarios: High-end scientific research, defense, aerospace, high-speed industry, etc.

Request a trial Join for comparison

Favorites Saved to favorites

  • SH6-202
  • SH6-202
  • SH6-202

    • Compliance: CE / KC / FCC

    Product Specification
    Model SH6-202
    Max. Resolution 2048×1024
    Full Frame Rate 2000FPS
    Max. Frame Rate 14000FPS
    Min. Exposure Time 1μs
    Bit Depth 8bit
    Color Monochrome (M) / Color (C)
    Cell Size(μm) 9μm
    Data interface 10GigE/GigE
    Dynamic Range 64dB
    Analog Gain ×2、×4、×8
    Operating Temperature Standard -10~50℃ customizable -40~65℃wide temperature range version
    Heat dissipation mode Air Cooling
    Pluggable HDD
    Extended Memory 4TB/12TB/24TB
    RAM 40GB/80GB/160GB/320GB(Optional)
    Lens Mount E mount (adapt to F mount C mount and EF mount)
    Power consumption DC24V，<25W
    Dimensions (excluding protrusion parts) 210D*110W*110H
    Weight 3.8kg

    Data Download

    SinceVision-SR7080 Parameter

    SinceVision-SR7080 Parameter

    PDF / 173.51KB

    Product Specifications

    Download Now Add to Download List Share file link

    Customer Case

    Analysis of Liquid Solution Extensibility

    Analysis of Liquid Solution Extensibility

    Fluid Mechanics High-Speed Camera
    Cavitation Bubble Observation

    Cavitation Bubble Observation

    Fluid Mechanics High-Speed Camera
    Dispensing Process Observation

    Dispensing Process Observation

    Consumer Electronics High-Speed Camera
    Observation of Asphalt Material Cracking Using DIC Experiments

    Observation of Asphalt Material Cracking Using DIC Experiments

    Materials Science High-Speed Camera
    Real-time observation of Hopkinson bar impact tests

    Real-time observation of Hopkinson bar impact tests

    Materials Science High-Speed Camera
    Observation of Microchannel Heat Dissipation Process

    Observation of Microchannel Heat Dissipation Process

    Fluid Mechanics High-Speed Camera
    Motion trajectory analysis of medical mechanical action

    Motion trajectory analysis of medical mechanical action

    Biomimetics High-Speed Camera
    Motion of a Rotating Electric Toothbrush Head with High-Speed Camera

    Motion of a Rotating Electric Toothbrush Head with High-Speed Camera

    Mechanical Manufacturing High-Speed Camera
