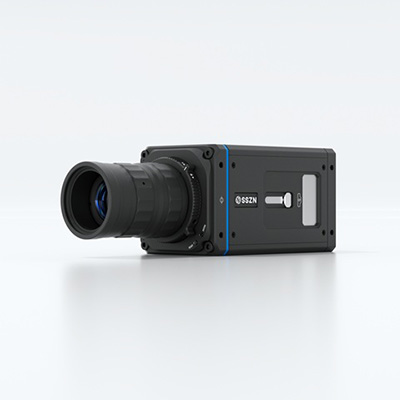

AIR-501

AIR-501

StackBSI technology (effectively improves quantum efficiency and photosensitivity)

Pluggable storage (supports CF card storage)

20-minute battery life (built-in NiMH battery, safe and risk-free)

Supports IRIG-B/IEEE1588 time code synchronization

40℃～70℃ (meets extreme operating conditions such as airborne applications)

Request a trial Join for comparison

Favorites Saved to favorites

Product Specification
Model AIR-501
Max. Resolution 2560×2048
Full Frame Rate 1000FPS
Max. Frame Rate 18000FPS
Min. Exposure Time 1μs
Bit Depth 8bit
Color Monochrome (M) / Color (C)
Cell Size(μm) 5.5μm
Data interface 10GigE/GigE
Dynamic Range 62dB
Analog Gain ×2、×4、×8
Operating Temperature Standard -10~50℃ customizable -40~65℃wide temperature range version
Heat dissipation mode Passive heat dissipation
Pluggable HDD
Extended Memory 1TB（CF Card）
RAM 32GB/64GB
Lens Mount C mount（with locking function)
Power consumption DC24V，<25W
Dimensions (excluding protrusion parts) 120D*72W*72H
Weight 1.4kg (built-in battery) / 1.1kg (excluding battery)
