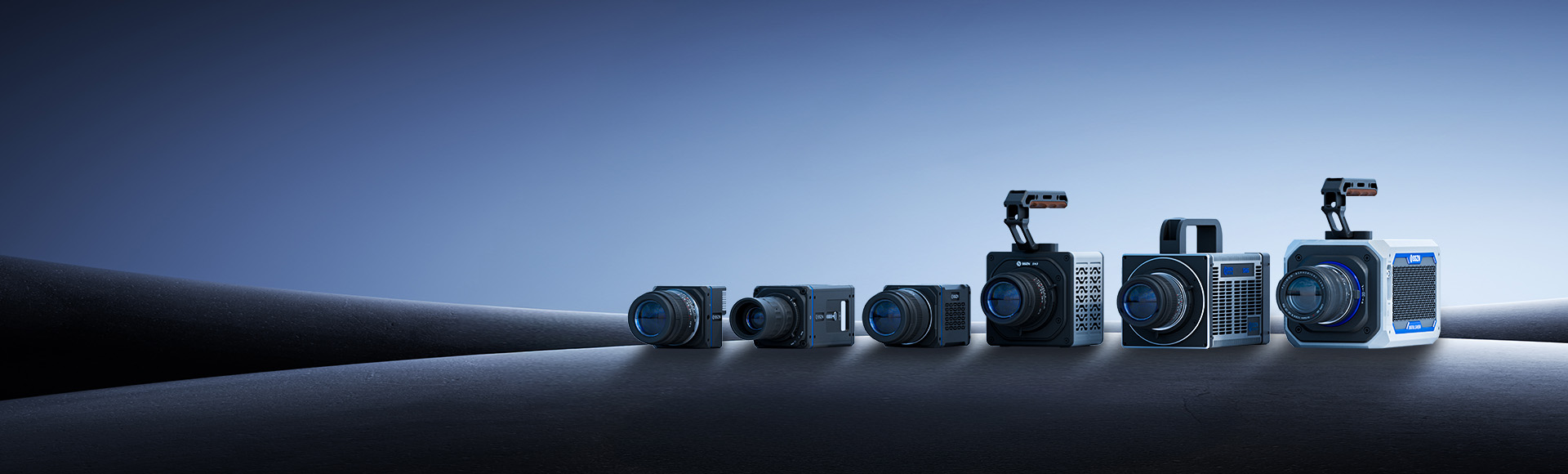

High-Speed Camera
SinceVision high-speed camera leverages advanced CMOS technology and proprietary architectures for elite motion analysis. Capturing microsecond-level changes with total precision, our systems achieve industry-leading speeds of 1.15 million FPS and resolutions up to 21MP. Engineered for aerospace, defense, and scientific research.
Product Advantages
Product Matrix
New product recommendations
Product Selection
| Model | Max. Resolution | Full Frame Rate | Max. Frame Rate | Min. Exposure Time | Cell Size(μm) | Data interface | Product Status | Compare | Favorites |
|---|---|---|---|---|---|---|---|---|---|

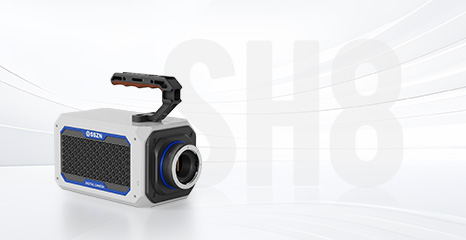

| SH8-120 | 1280×1024 | 20000FPS | 700000FPS | 150ns | 20μm | 10 Gigabit Ethernet compatible with 2.5Gbps 1Gbps | Published |
|
|
| SH8-125 | 1280×1024 | 25000FPS | 1000000FPS | 150ns | 20μm | 10 Gigabit Ethernet compatible with 2.5Gbps 1Gbps | Published |
|
|
| SH8-130 | 1280×1024 | 30000FPS | 1100000FPS | 150ns | 20μm | 10 Gigabit Ethernet compatible with 2.5Gbps 1Gbps | Published |
|
|

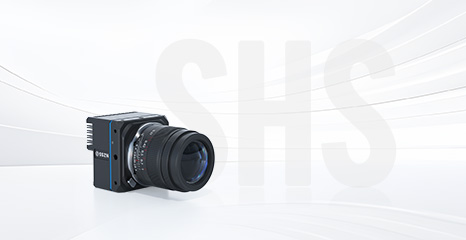

| SHS-202 | 1920×1080 | 2250FPS | 69200FPS | 100ns | 10μm | CoaxPress | Published |
|
|
| SHS-201 | 1920×1080 | 1100FPS | 34400FPS | 100ns | 10μm | CoaxPress | Published |
|
|
| SHS-103 | 1280×864 | 3600FPS | 88600FPS | 100ns | 10μm | CoaxPress | Published |
|
|
| SHS-101 | 1280×864 | 1800FPS | 44300FPS | 100ns | 10μm | CoaxPress | Published |
|
|

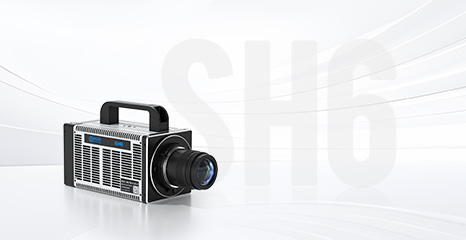

| SH6-505 | 2560×2016 | 4500FPS | 56000FPS | 1μs | 9μm | 10GigE/GigE | Published |
|
|
| SH6-504 | 2560×2016 | 3600FPS | 50000FPS | 1μs | 9μm | 10GigE/GigE | Published |
|
|
| SH6-503S | 2560×1920 | 3000FPS | 500000FPS | 100ns | 7.8μm | 10GigE/GigE | Published |
|
|
File
SinceVision-High-speed Camera-Product Brochure 01V1 Hot New
PDF / 12.98MB
Product Manual
Download Now
Add to Download List
SinceVision-High-speed Camera-Product Brochure 01V1 Hot New
PDF / 12.98MB
Product Manual
FAQs
-
1. What is the minimum exposure time for capturing hyper-fast events?
The cameras offer a minimum exposure time of 100ns. This capability is essential for freezing motion in applications such as explosion experiments, crack extension research, and laser melting pool observation.
-
2. Does the system support PIV (Particle Image Velocimetry) for fluid mechanics?

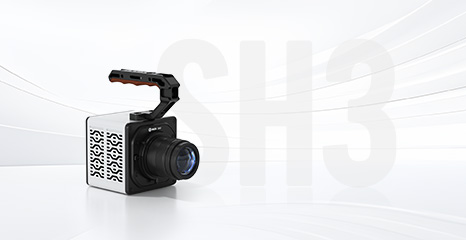

Yes, SinceVision cameras feature a specialized PIV double exposure mode. The SH6 and SH3-MINI series provide a 210ns cross-frame interval, which is critical for high-precision flow field testing and microfluidics.
-
3. Can the cameras operate in extreme environmental conditions?

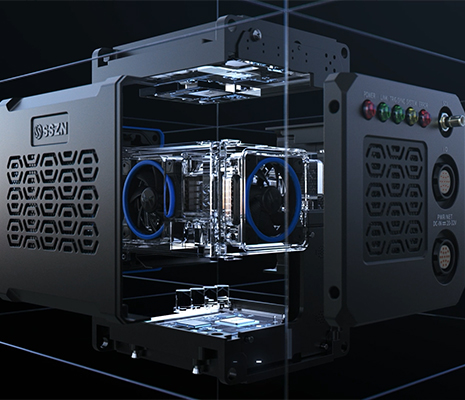

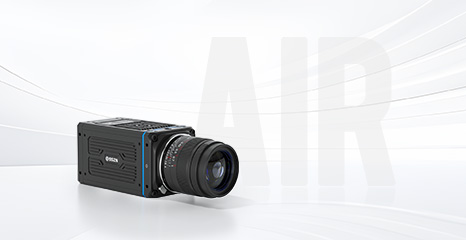

Standard models are rated for -10°C to 50°C, but customized large-temperature versions are available that operate from -40°C to 65°C (or 70°C for the AIR series). The hardware is also built to withstand 200G impacts and meets multiple military standard certifications for stability.
-
4. How much internal storage is available for long-duration recording?

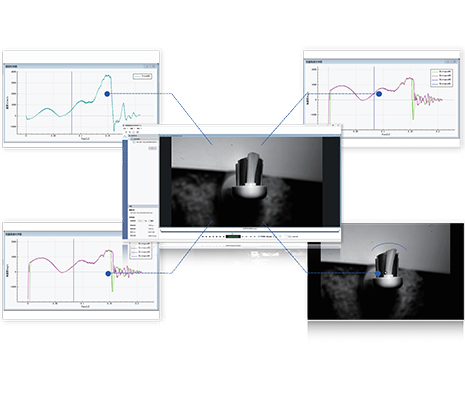

SinceVision provides some of the largest storage capacities in the industry. The systems support up to 320GB of high-speed RAM and an optional 24TB of customized non-volatile storage to accommodate massive data requirements.
-
5. Do these cameras support 4K or 5K high-resolution imaging?
Yes, the Ultra HD series is specifically designed for high-end research and broadcasting-grade quality. It features 5K resolution (5120x4096) at 1000 FPS and 4K resolution (4096x2048) at 2000 FPS.
