Inverter Pin Detection in Battery Cell Testing

Precision and efficiency in battery cell testing are critical, especially in the growing photovoltaic industry. Detecting inverter pin defects during this process ensures reliable energy storage solutions. Traditional inspection methods often fall short due to limitations in accuracy and speed. The integration of advanced 3D laser profiling technologies addresses these challenges effectively.

Industry Problems in Battery Cell Testing

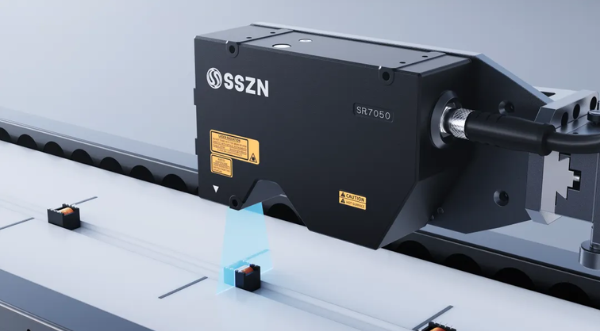

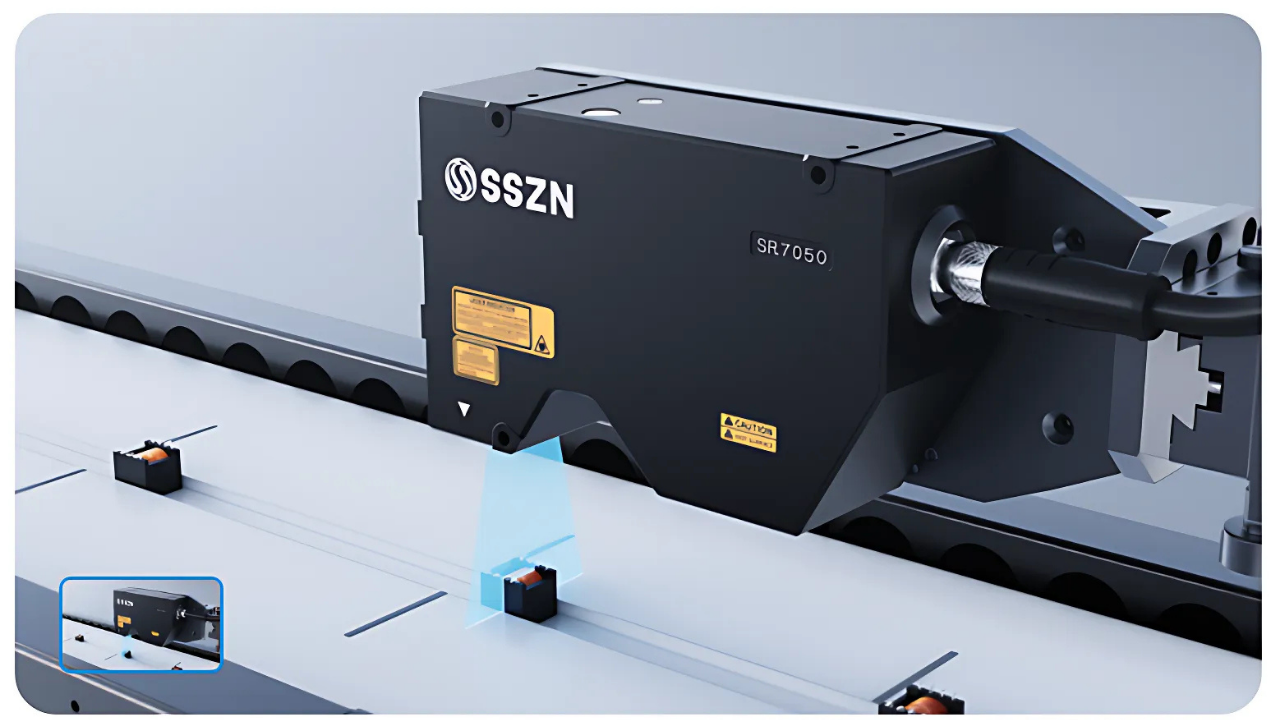

Image: Inverter pin detection

Battery cell manufacturing involves complex processes to ensure performance consistency. Inverter pin inspection is a pivotal stage where various issues arise:

·  Pin Defects: Bent, deformed, or missing pins hinder electrical connections, impacting system reliability.

·  Precision Needs: Identifying minor deviations in pin alignment and height is critical but challenging for traditional methods.

·  Mass Production: High-speed production lines require automated solutions capable of maintaining quality without compromising efficiency.

Another layer of complexity lies in glue dispensing operations, where maintaining correct glue height ensures the stability and proper functioning of the main and fine grid electrodes.

The Role of the SR7050 3D Laser Profiler

The SinceVision SR7050 3D Laser Profiler is a revolutionary tool tailored to overcome these challenges. Designed as a state-of-the-art laser surface profilometer, it delivers unparalleled performance in inverter pin detection.

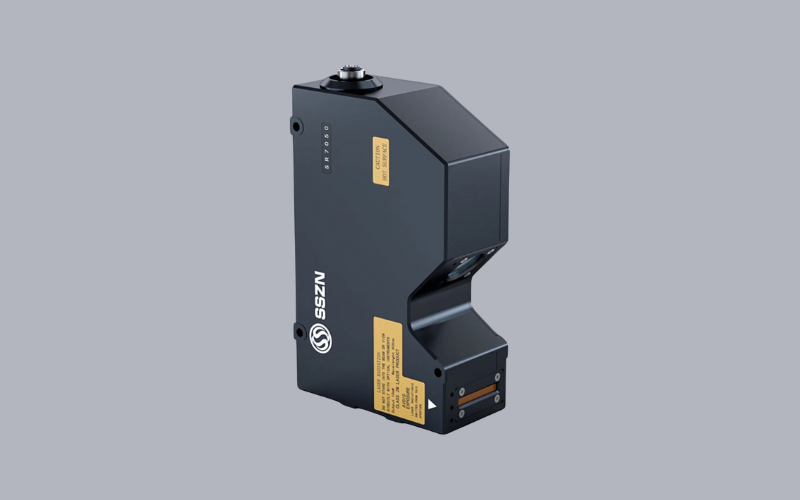

Image: SR7050 3D Laser Profiler

Key Features of the SR7050

1. High Accuracy: The SR7050 measures pin height with exceptional repeatability, down to 0.002mm. Such precision ensures early detection of minor pin defects.

2. Comprehensive Detection: It identifies bent, deformed, or missing pins, enhancing quality control processes essential for the photovoltaic industry.

3. Optimized for Speed: With a scanning speed of up to 10,000 Hz, the device is tailored for fast-paced production environments.

Technical Capabilities:

· Reference Distance (CD): 50mm

· X-Axis Contour Points: 3200

· Reflection Angle: 45°

· Operational Humidity: 35% to 85% without condensation

How 3D Laser Profiling Transforms Testing Processes

Using an industrial 3D scanner like the SR7050 elevates battery cell testing in several ways:

·  Surface Profile Measurement: Accurately examines glue heights and pin alignments.

·  Laser Sensor Integration: Ensures non-contact inspection for durability and safety.

·  Versatility: From battery cell inspection to detecting defects in construction and manufacturing, the SR7050 adapts across industries.

This device also functions as a 3D laser scanning machine, capable of delivering insights beyond battery manufacturing to other applications in construction and advanced industrial testing.

SinceVision's innovations in 3D measuring machines and laser profilometers cater to the evolving demands of precision-focused industries. The SR7050, recognized as a potential best 3D sensors, underscores the brand's commitment to engineering excellence.

For more details on inverter pin detection and how the SR7050 empowers the photovoltaic industry, visit SinceVision.
