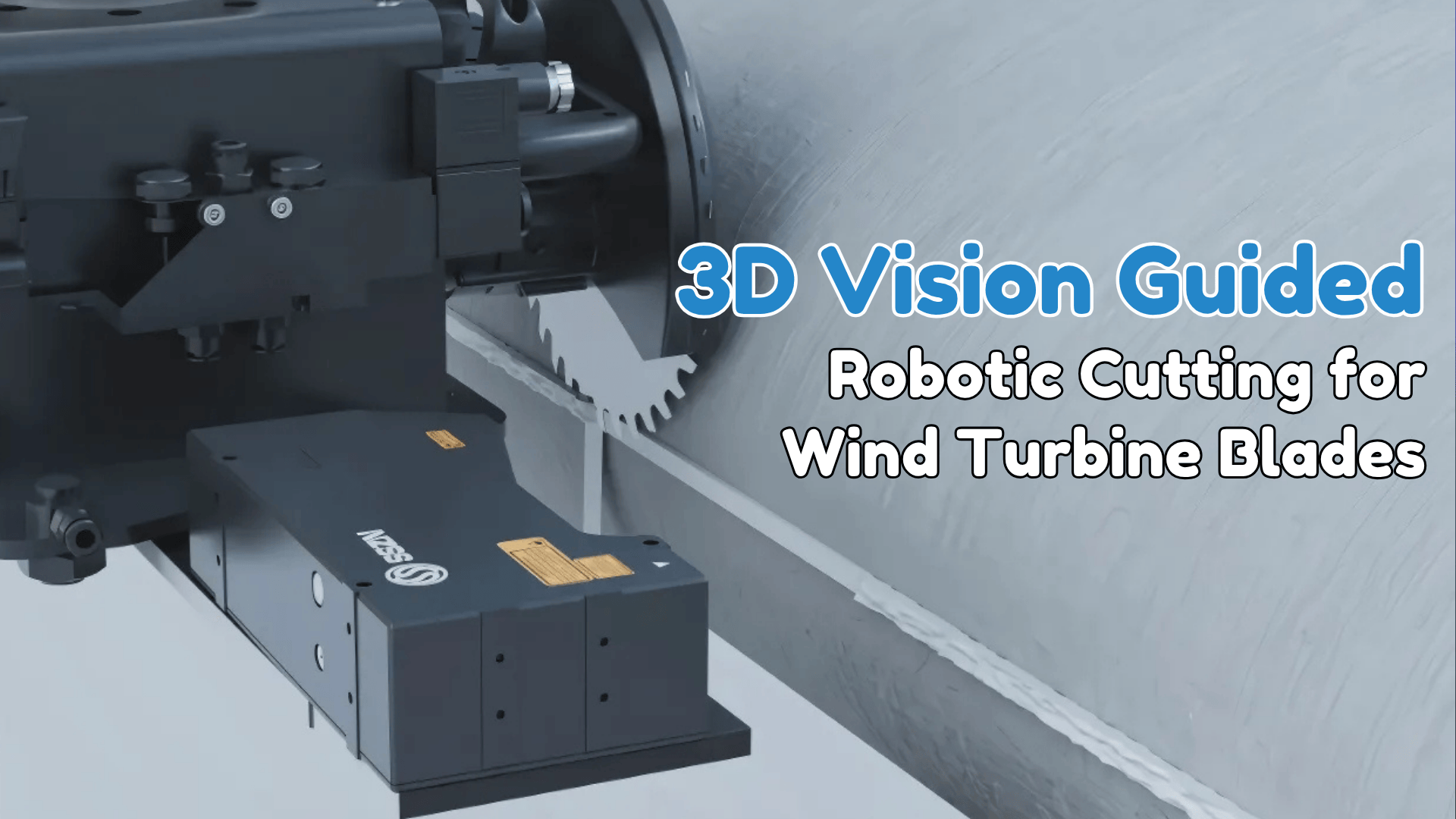

3D Vision-Guided Intelligent Robotic Cutting for Wind Turbine Blades

Precision Automation in Composite Blade Manufacturing

Wind turbine blades are big, curved, and complex. This makes it hard to manufacture them precisely. Blade cutting is one of the most important steps. It requires high accuracy and consistency. Manual and semi-automated methods often lack precision and speed.

Manufacturers are now using 3D vision-guided robots for automated blade cutting. This helps them meet growing demands. This method combines 3D vision, six-axis robots, and accurate calibration algorithms. It boosts quality and productivity.

Industry Challenges in Blade Cutting

Precision on Complex Surfaces: Wind turbine blades use composite materials. They have surfaces that are not uniform. To get clean and precise cuts on these shapes, you need sub-millimeter precision.

Synchronizing Robotic Motion: Coordinating the movement of a six-axis robotic arm with cutting tools is essential. Any delay or misalignment can result in poor cuts or even material damage.

From Visual Data to Robot Action: Translating 3D camera data into robotic commands requires fast calibration and image processing. Without reliable sensor data, robotic motion becomes inaccurate.

SinceVision SR7400 3D Laser Profiler: Precision Meets Speed

To tackle these challenges, SinceVision presents the SR7400 3D Laser Profiler. This solution is designed for vision-guided robotic cutting in wind turbine blade manufacturing.

High-Speed 3D Scanning: The SR7400 operates at up to 10,000 Hz, allowing it to scan large, curved blade surfaces quickly and accurately. It has 3200 X-axis contour points. This means it captures detailed surface profiles for real-time processing.

Sub-Micron Accuracy: Achieving consistent cutting quality demands top-tier precision. The SR7400 offers Z-axis static repeatability of 5 μm. It also has a linear accuracy of ±0.05% F.S. This ensures reliable edge detection and depth control.

Stability You Can Count On: Advanced 2D grayscale image processing algorithms enhance measurement stability. This keeps the 3D profiler's results steady, even with changing light or surface conditions.

Enabling Intelligent Robotic Cutting for Green Energy

With the rise of wind energy around the globe, manufacturers need smart, automated systems to keep up with demand. The SR7400 makes it possible to:

a. Minimize human error in blade trimming

b. Reduce scrap and rework

c. Improve throughput in robotic cutting stations

SinceVision’s vision-guided solution connects advanced sensing with robotic intelligence. This ensures precise cutting for large wind turbine blades.

3D vision-guided robotic cutting is vital for modern composite manufacturing. It’s more than progress; it’s a necessity. The SR7400 3D Laser Profiler from SinceVision offers speed, precision, and stability. This is essential for success in industrial automation within the renewable energy sector.
