SH3 Series High-Speed Camera from SinceVision: Compact Power for Scientific and Industrial Imaging

The SH3 Series High-Speed Camera by SinceVision is a compact yet powerful imaging tool built for high-end scientific research and industrial applications. The SH3 is part of SinceVision’s popular MINI Series. It offers a great mix of performance, size, and heat control. This makes it a top choice for places that need high frame rates and reliability.

Engineered for Performance and Efficiency

The SH3 Series uses a 20-layer PCB stacking design. This setup helps with heat dissipation while keeping the camera size small. The SH3 features 10Gbps SerDes for quick and steady data transfer. This holds true even during high-speed recording.

SinceVision's in-house storage design supports 128GB of memory. It also offers optional 4TB hard drive storage. Best of all, it keeps the unit compact.

Dual Operating Modes for Flexible Workflows

The SH3 offers two flexible data storage modes:

Real-time mode: Writes data directly to the hard drive with memory used as a buffer.

Copy mode: Captures to memory first, then transfers data to the drive.

This versatility allows users to adapt based on their recording requirements and workflow.

Interface and Synchronization Features

This camera includes IRIG-B input (AC/DC) and supports essential I/O functions such as:

1. External trigger

2. Synchronization

3. PIV dual-exposure capability with a minimum inter-frame interval of 210 ns

These features support precise timing, essential in high-speed experiments and motion analysis.

Rugged and Reliable for Extreme Conditions

The SH3 Series is built for durability:

a. Shock-resistant up to 200G

b. Vibration tested at 5 m/s² at 150Hz

c. Wide temperature operation: from -40°C to +65°C

d. Certified to meet military standards for harsh environments.

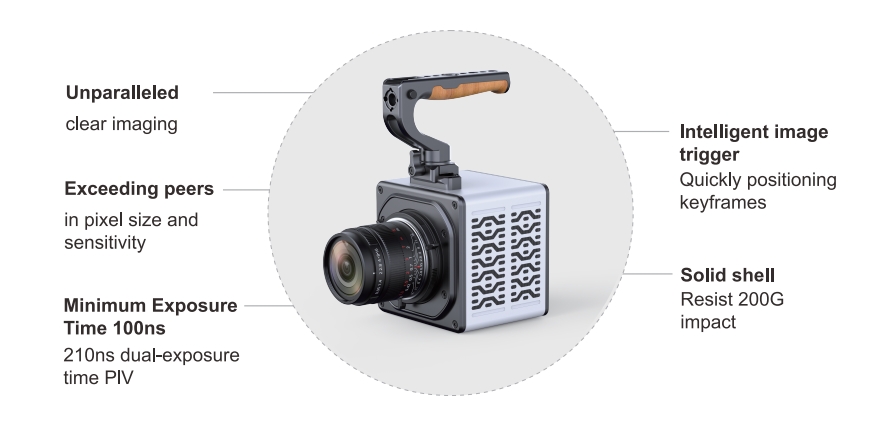

Imaging Capabilities

The SH3 Series delivers:

i. 1 million pixel resolution at 10,000 FPS

ii. Minimum exposure time of just 0.1 µs

iii. Ultra-compact form: 90 x 110 x 110 mm

This makes it ideal for embedded system integration, especially where space is limited.

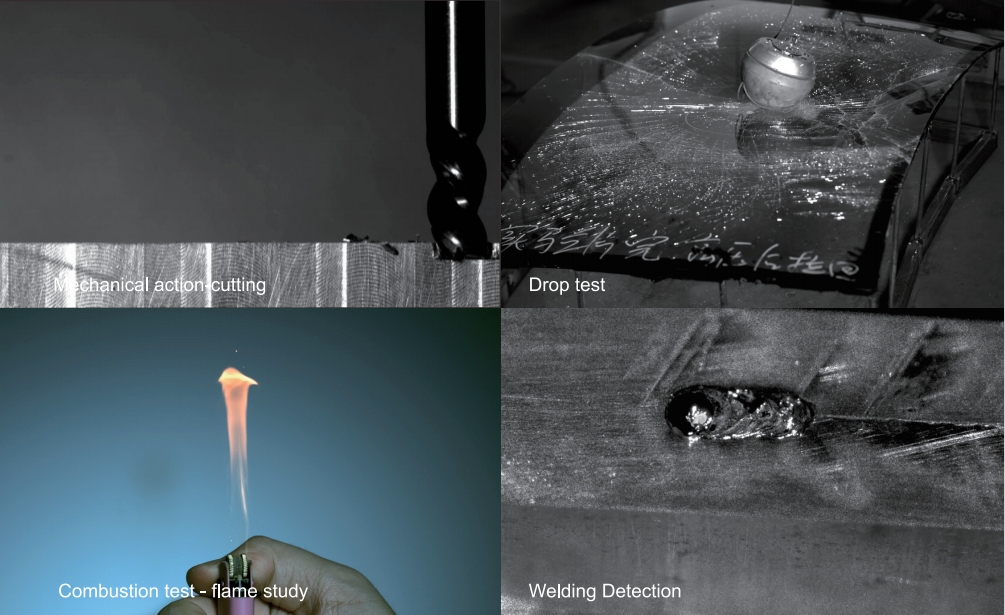

Typical Applications of SH3 Series

The SH3 is built to meet real-world industrial and research demands, including:

1. Mechanical Cutting Action Recording

2. Product Drop Testing

3. Flame Behavior Studies in Combustion Testing

4. High-Speed Welding Inspection

The SH3 Series provides the precision and speed that each application needs for quick image capture.

Conclusion

The SinceVision SH3 Series High-Speed Camera is a dependable and versatile imaging tool for both industries and labs. With its compact size, powerful storage, and high durability, it supports advanced imaging needs across various fields.

The SH3 Series is a great choice for those who need a high-speed camera. It offers a good mix of performance, integration, and toughness.
