Front Page Product Accessories Correction and Communication Unit SU1-EC Communication Unit SU1-EC
Product Specifications

Category

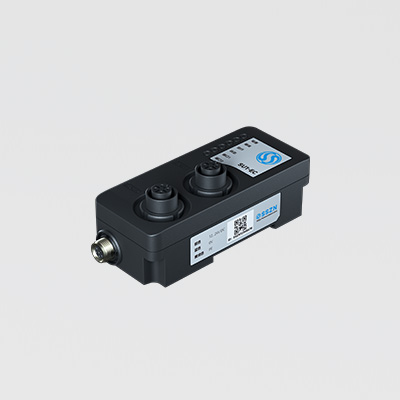

SU1-EC

SU1-EC

Compatible with SE1 SE2 series

Version: EtherCATSlave

Compatible Specification: IEEE802.3u

Request a trial Join for comparison

Favorites Saved to favorites

Product Specifications
Model SU1-EC
Version EtherCATSlave
Applicable specifications IEEE802.3u
Distance between nodes Max.100m
Transmission rate 100Mbps
Communication cable STP 5 or above
Corresponding function Process data communication and mailbox communication(corresponding to CoE)
Power indicator green
Error indicator red
Running indicator green
Status indicator green
IN indicator green
OUT indicator green
Connectable model Sensor controller SEA series
Number of connecting units Max 8(SEA can connect 2 sensors at the same time)
Type of connection 10-pin connector
Protection grades IP50
Ambient temperature/humidity -20~+50℃/35~85%RH(no condensation and freezing)
Storage ambienttemperature/humidity -40~+70℃/35~85%RH(no condensation and freezing)
Vibration resistance 10~55Hz double amplitude of 1.5mm、2 hours in each direction of X、Y and Z
Impact resistance 500m/s2(about 50G) 3 times in each direction of X Y and Z
EMC EMC Directive(2014/30/EU)
Environment RoHS Directive(2011/65/EU)
Data transmission PDO communication(transmitting:Max.120byte receiving: Max.36byte)； SDO communication
