Point Laser Height Difference Inspection for Stone Blocks

I. Project Background

Rocks feature excellent firmness and stability, and stone blocks have diverse applications and values across various environments and scenarios. To meet different production requirements, manufacturers need to conduct high-precision inspection of the height difference of stone blocks.

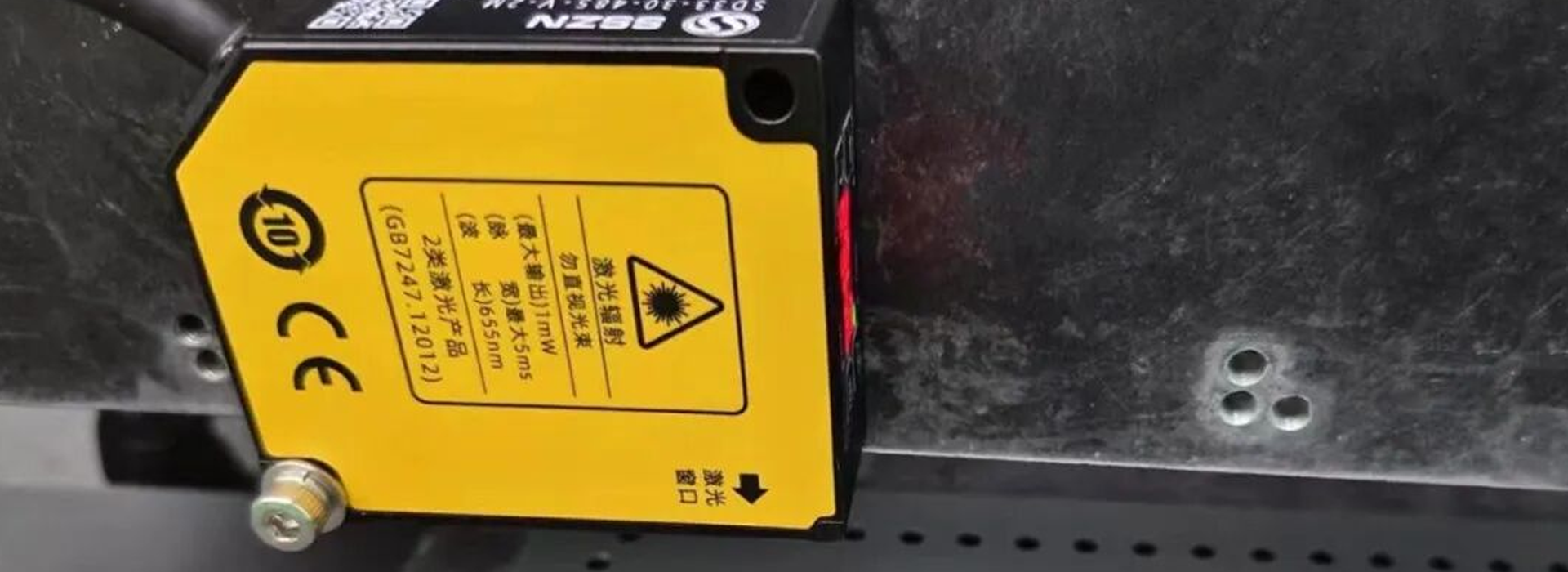

In this issue, ShenSir will present a case of height difference inspection for stone blocks using the SD33 Series Laser Displacement Sensors. Let’s take a look.

II. Inspection Requirements

• Product Name: Stone Block

• Measurement Item: Height Difference

• Accuracy Requirement: Repeatability 0.04 mm

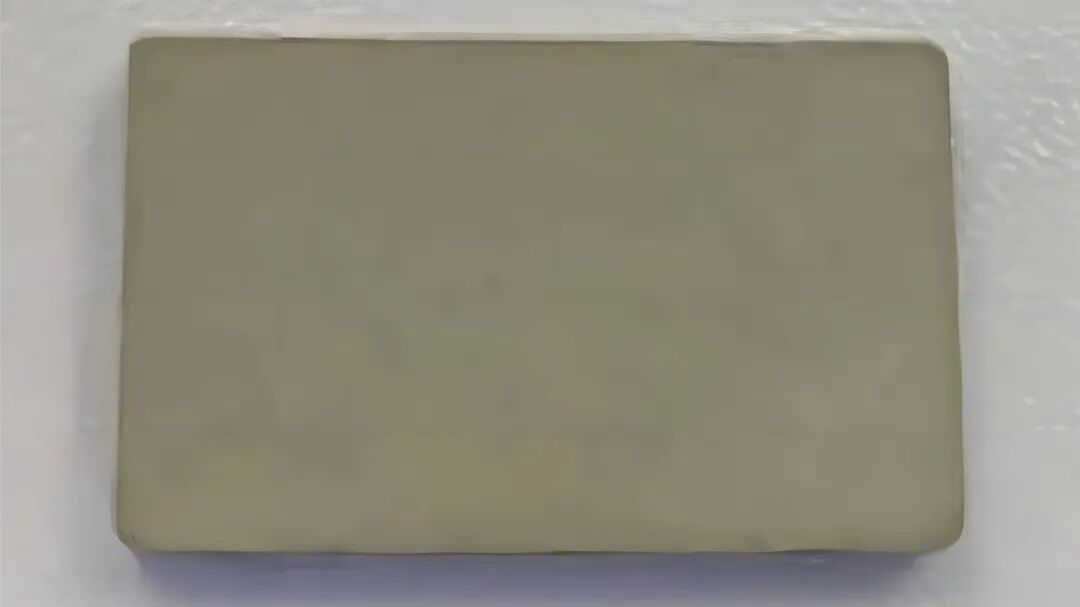

Figure | Physical Picture

III. Measurement Process

The solution adopts direct point laser measurement. With P5 as the reference point, the height differences of four points (P1, P2, P3, P4) are measured.

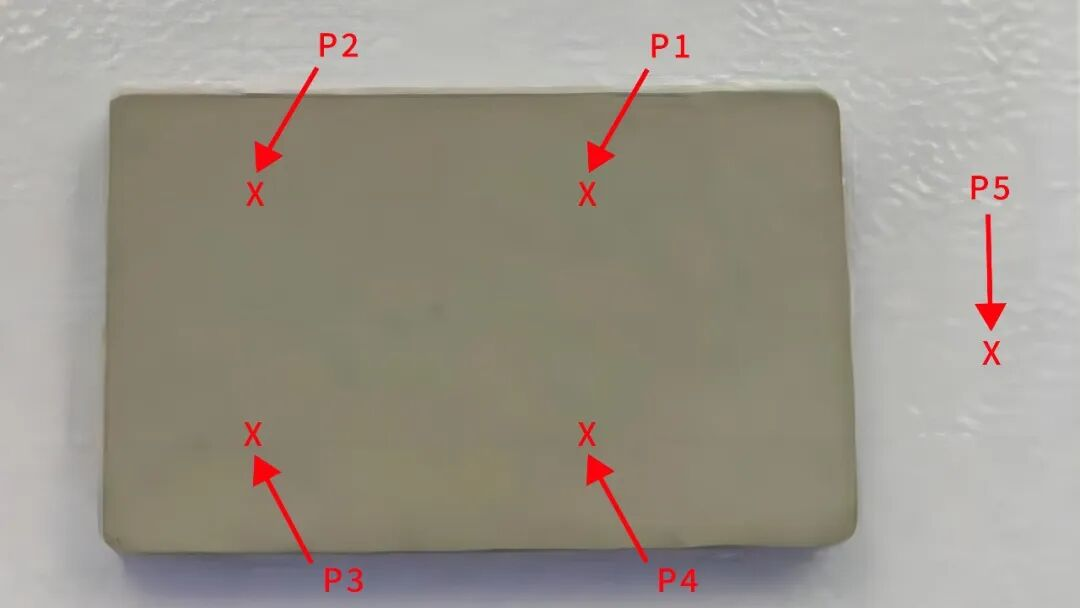

Figure | Point Selection Diagram

In 10 dynamic measurements, the single-point height repeatability is 0.002 mm, and the maximum height difference among the four points is 0.011 mm.

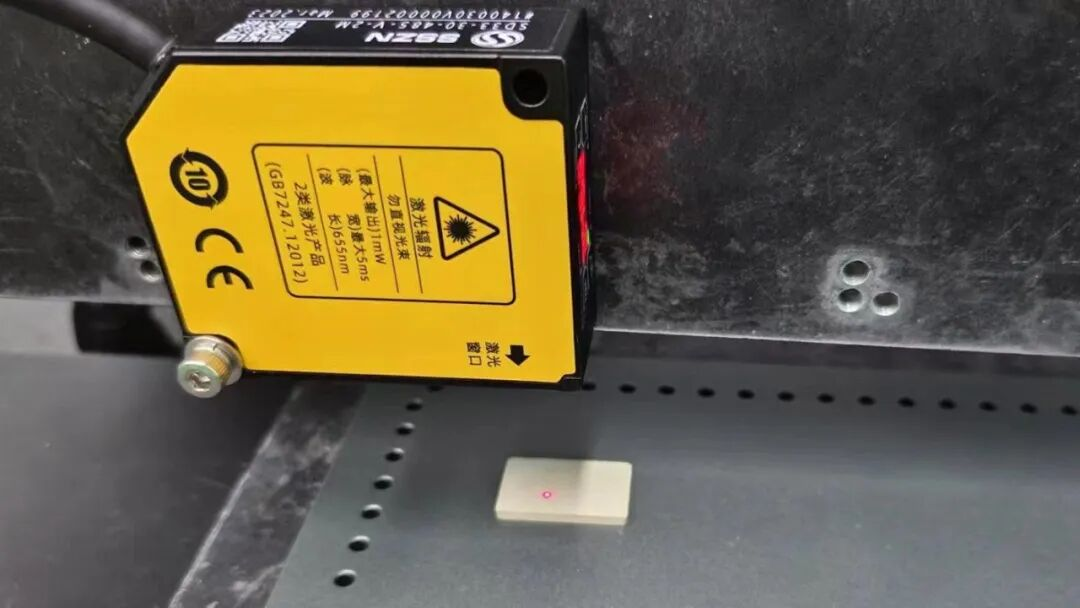

Figure | Test Diagram

IV. Sensor Selection

Shenshi Intelligent laser displacement sensors are widely used in industrial manufacturing and other fields. They highly cooperate with customers to improve production line performance and further reduce costs. Customers with relevant needs are welcome to inquire and purchase.
