Motion trajectory analysis of medical mechanical action
Motion trajectory analysis of medical mechanical action
Product Inquiry
Related tags
Industry pain points and demands

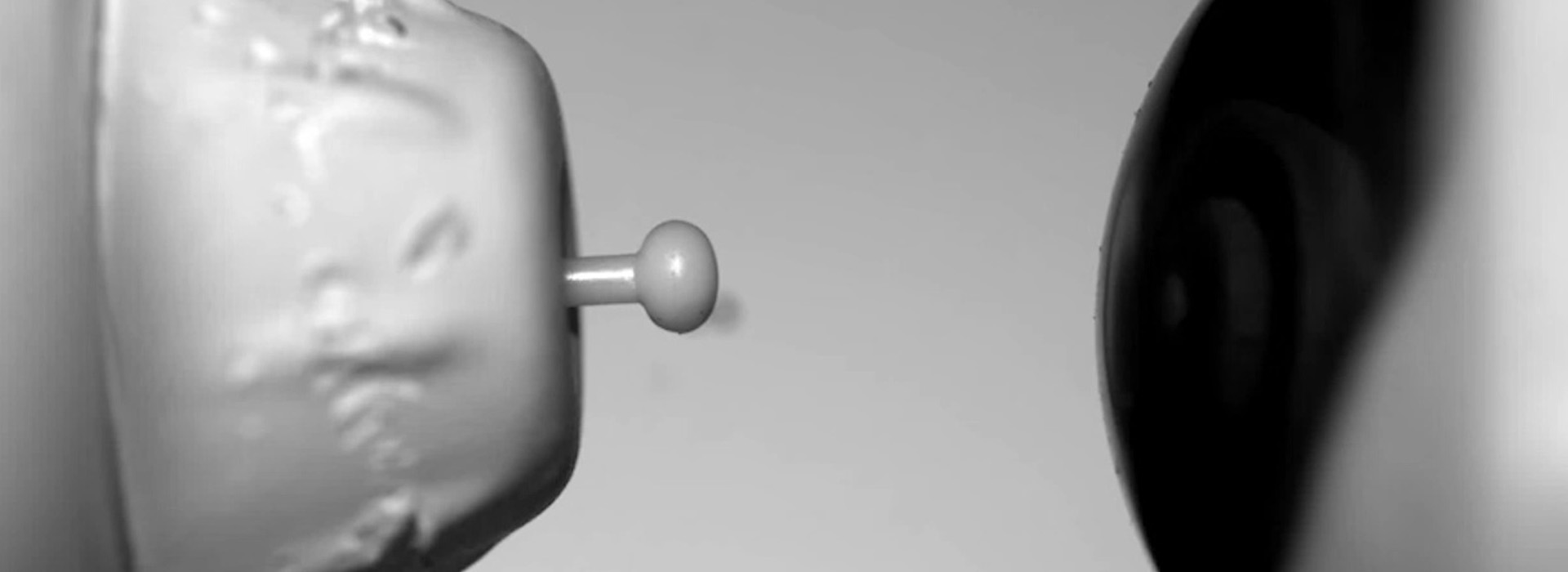

Minimally invasive ocular medical devices use cutting-edge technologies to provide convenient, scientific and efficient solutions for visual function and visual skill assessment, visual diagnosis, visual intervention and corrective treatment, so that smart technology can truly benefit public eye health. Through the front end of the medical instrument, a medical ball with a diameter of 2-3mm is popped out at a speed of 0.3-0.9m/s, and the ball hits the eyeball with a certain force to achieve visual diagnosis, visual intervention and corrective treatment. Due to the fast movement of the ball, high-speed cameras are needed to observe the process, and then diagnose the ball when it pops out to the eyeball. The speed and displacement of the ball must be controlled to ensure and diagnose the safe trajectory of the ball.
Advantages & characteristics
| specification | |||
| Model number | TYPE | SH6-504 | |
| Maximum resolution | Full Resolution | 2560 x 2016 | |
| Full shot speed | Full Frame Rate | 3600fps | |
| Maximum shooting speed | Maximum Frame Rate | 50000fp | |
| Minimum exposure time | Minimum Exposure Time | 1 mu s | |
| Pixel size | Pixel Size | 9 microns | |
| Standard memory | Standard RAM | 40 GB, 80 GB, and 160 GB are optional | |
| Extended memory | Extended Memor | 4T, 12T, and 20T are optional | |
| Dynamic range | Dynamic Range | 60dB | |
| Analog gain | Analog Gain | X 2, x 4, x 8 | |
| Bit depth | Bit Resolution | 8bit/10bit/12bit | |
| Shutter type | Shutte Mode | Global shutter | |
| color | Color | Monochrome (M)/Color (C) | |
| Window acquisition | ROI | support | |
| Lens bayonet | Lens Mount | Port E is used to switch to ports F, C, and EF | |
| Data interface | Data Interface | Ten Gigabit Ethernet, adaptive Gigabit Ethernet | |
| sensitivity | Sensitivity | ISO10000(M); ISO3000(C) | |
| Fan control | Fan Control | Supports opening and closing, and ADAPTS the rotation speed according to the temperature | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | SDI, Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |
| External Signal | External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal | |
| Power Supply | Power Supply | Dual power supply, DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
| Weight | Weight | 3.8kg | |
| Power Consumption | Power Consumption | 55W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
