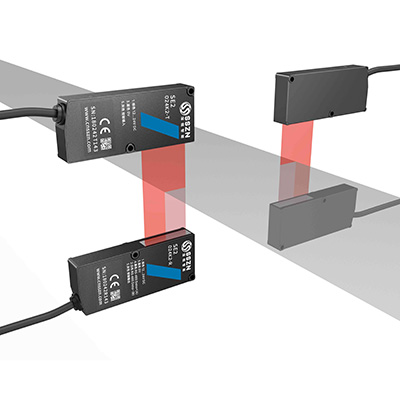

SE2-024K2

Linearity: ±0.4%F.S.（±96μm）

Transmitter/Receiver Distance: Maximum 200 mm

Measurement Range: Width: 24 mm / Edge: ±12mm

Sampling Period: 0.5 ms / 2 kHz sampling frequency

Repeatability: 50 μm

Favorites Saved to favorites

Product Specifications


Model	SE2-024K2
Measuring range(mm)	±12 mm
Installation distance of sensor heads(mm)	Max.200 mm
Light source - Medium - wavelength	Red semiconductor laser ·660 nm
Maximum output power(μw)	260 μw
Laser grade	class I（IEC）
Spot size(mm)	5*29 mm
Linearity	±0.4%F.S.(±96μm)
Repeatability(μm)	50 μm
Sampling period(μs)	500 μs
Temperature drift	±0.01 %F.S./℃
Indicator LED	Emitter-power indicator: green Receiving head-power indicator: green Direction Check Indicator: Red
Communication method	RS-485 (the longest cable is 10m)
Power supply voltage	DC12-24V±10%
Current consumption	<60mA@24VDC；<100mA@12VDC
Connection type	Connector: M8-6 pin connector with 300mm cable
Protection circuit	Reverse connection protection short circuit protection overcurrent protection and overvoltage protection
Lead strength	The maximum tensile force can be 30N lasting for 1min
Protection grades	IP67
Operating ambient temperature / humidity	'-10~+50℃/35~85% RH(no condensation and freezing)
Storage ambient temperature / humidity	'-20~+60℃/35~85%RH(no condensation and freezing)
Ambient illumination	Sunlight: less than 10000lux incandescent lamp: less than 3000lux
Vibration resistance	10~55Hz double amplitude 1.5mm for 2 hours in each direction of X Y and Z
Impact resistance	About 50g (500m/S2) 3 times in each direction of X Y and Z
EMC	EMC Directive (2014/30/EU)
Environment	RoHS directive (2011/65/EU)
Shell material	Aluminium alloy
Weight	80mm33mm15mm/64g
