Front Page Industrial Sensors Spectral Confocal Displacement Sensor SCI Series SCI20011
Product Specifications
Accessories
Downloads
Case Studies
Related Products

Category

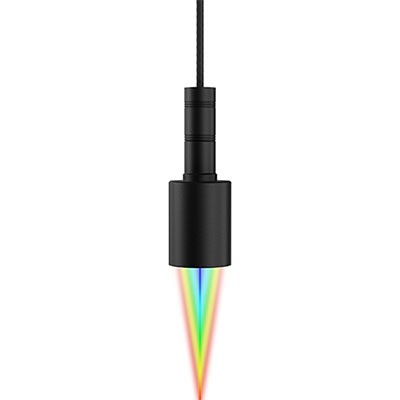

SCI20011

SCI20011

Spot size: 55μm/155μm

Working distance: 70mm

Linearity: ±2.2μm

Angular characteristics: ±11°

Minimum measurable transparent object thickness: 660μm

Request a trial Join for comparison

Favorites Saved to favorites

  • SCI20011
  • SCI20011
  • SCI20011

    • Compliant with CE/FCC/KC Standards

    Product Specifications
    Model SCI20011
    Controller SCI501A/SCI502A，SCI501B/SCI502B
    Fixture model SCI-01
    Spot size（μm） 55/115 μm
    Working distance（mm） 70 mm
    Measuring range（mm） 20 mm
    Resolution（μm） 0.025 μm
    Linearity（μm） ±2.2 μm
    Angle characteristic ±11°
    Minimum measurable transparent object thickness（μm） 660 μm
    Diameter 44 mm
    Diameter（mm） 123.9 mm
    Length（mm） 258 g
    Weight（g） 24VDC±10%
    Power supply voltage 35%~85%RH (no condensation)
    Shell material Aluminium alloy

    Accessories

    SCB-F50-MPO-HA1Y

    SCB-F50-MPO-HA1Y
    SCB-F105-MPO-HA1Y

    SCB-F105-MPO-HA1Y
    SCI502B

    SCI502B
    SCI502A

    SCI502A
    SCI501B

    SCI501B
    SCI501A

    SCI501A

    Downloads

    SinceVision-SCI20011 Parameter

    SinceVision-SCI20011 Parameter

    ZIP / 16.2KB

    Product Specifications

    Download Now Add to Download List Share file link

    Case Studies

    Detection of Repeatability in Transparent Glass Flatness Measurement

    Detection of Repeatability in Transparent Glass Flatness Measurement

    Consumer Electronics Spectral Confocal Displacement Sensor
    Precise Height Measurement of Mobile Phone Camera Modules

    Precise Height Measurement of Mobile Phone Camera Modules

    Consumer Electronics Spectral Confocal Displacement Sensor
    Point-Spectrum Depth Inspection of Screw Holes on Mobile Phone Middle Frames

    Point-Spectrum Depth Inspection of Screw Holes on Mobile Phone Middle Frames

    Consumer Electronics Spectral Confocal Displacement Sensor
    Point-Spectrum Curved Glass Profile Inspection

    Point-Spectrum Curved Glass Profile Inspection

    Consumer Electronics Spectral Confocal Displacement Sensor
    Mobile Phone Gap Inspection

    Mobile Phone Gap Inspection

    Consumer Electronics Spectral Confocal Displacement Sensor
    Thickness Inspection of Transparent Curved Products

    Thickness Inspection of Transparent Curved Products

    Consumer Electronics Spectral Confocal Displacement Sensor
