Front Page Industrial Sensors Spectral Confocal Displacement Sensor SCI Series SCI10015
Product Specifications
Accessories
Downloads
Case Studies
Related Products

Category

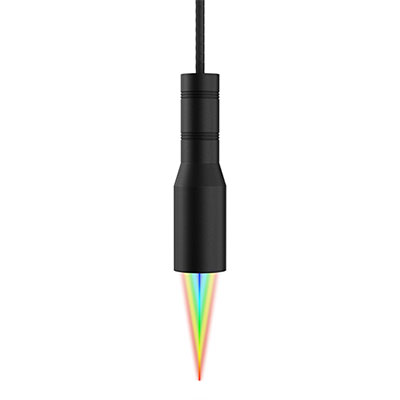

SCI10015

SCI10015

Spot size: 19.2μm/40.3μm

Working distance: 40mm

Linearity: ±1.6μm

Angular characteristics: ±15°

Minimum measurable transparent object thickness: 300μm

Request a trial Join for comparison

Favorites Saved to favorites

  • SCI10015
  • SCI10015
  • SCI10015

    • Compliant with CE/FCC/KC Standards

    Product Specifications
    Model SCI10015
    Controller SCI501A/SCI502A，SCI501B/SCI502B
    Fixture model SCI-01
    Spot size（μm） 19.2/40.3 μm
    Working distance（mm） 40 mm
    Measuring range（mm） 10 mm
    Resolution（μm） 0.012 μm
    Linearity（μm） ±1.6 μm
    Angle characteristic ±15°
    Minimum measurable transparent object thickness（μm） 300 μm
    Diameter 30 mm
    Diameter（mm） 111.5 mm
    Length（mm） 127 g
    Weight（g） 24VDC±10%
    Power supply voltage 35%~85%RH (no condensation)
    Shell material Aluminium alloy

    Accessories

    SCB-F50-MPO-HA1Y

    SCB-F50-MPO-HA1Y
    SCB-F105-MPO-HA1Y

    SCB-F105-MPO-HA1Y
    SCI501A

    SCI501A
    SCI501B

    SCI501B
    SCI502A

    SCI502A
    SCI502B

    SCI502B

    Downloads

    SinceVision-SCI10015 Parameter

    SinceVision-SCI10015 Parameter

    PDF / 239.11KB

    Product Specifications

    Download Now Add to Download List Share file link

    Case Studies

    Precise Height Measurement of Mobile Phone Camera Modules

    Precise Height Measurement of Mobile Phone Camera Modules

    Consumer Electronics Spectral Confocal Displacement Sensor
    Point-Spectrum Depth Inspection of Screw Holes on Mobile Phone Middle Frames

    Point-Spectrum Depth Inspection of Screw Holes on Mobile Phone Middle Frames

    Consumer Electronics Spectral Confocal Displacement Sensor
    Point-Spectrum Curved Glass Profile Inspection

    Point-Spectrum Curved Glass Profile Inspection

    Consumer Electronics Spectral Confocal Displacement Sensor
    Mobile Phone Gap Inspection

    Mobile Phone Gap Inspection

    Consumer Electronics Spectral Confocal Displacement Sensor
    Thickness Inspection of Transparent Curved Products

    Thickness Inspection of Transparent Curved Products

    Consumer Electronics Spectral Confocal Displacement Sensor

    Related Products

    SCI01236

    SCI01236

    25mm long range & ±2.4μm linear accuracy，±36°large reflection angle，minimum measurable thickness of transparent objects：35μm
    Product Details Request a Trial Add to Favorites
    SCI20011

    SCI20011

    70mm long range & ±2.2μm linear accuracy, ±11° large reflection angle, minimum measurable thickness of transparent objects: 660μm
    Product Details Request a Trial Add to Favorites
    SCI04025

    SCI04025

    16mm working distance & ±0.8μm linear accuracy, ±25° large reflection angle, minimum measurable thickness of transparent objects: 130μm
    Product Details Request a Trial Add to Favorites
    SCI04020

    SCI04020

    This spectral confocal displacement sensor features a 40mm working distance, ±0.8μm linear accuracy, and a large ±20° reflection angle, meeting the inspection requirements of high-end equipment such as imaging systems.
    Product Details Request a Trial Add to Favorites
    SCI03560

    SCI03560

    With a 12.8mm working distance and ±0.7μm linear accuracy, and a wide ±60° reflection angle, this spectral confocal displacement sensor is ideal for measuring objects of any shape or material.
    Product Details Request a Trial Add to Favorites
    SCI01045

    SCI01045

    A spectral confocal displacement sensor with a 10mm working distance, ±0.2μm linear accuracy, and ±45° reflection angle, meeting the measurement needs of precision small parts.
    Product Details Request a Trial Add to Favorites
    SCI00532

    SCI00532

    25mm working distance, ±0.2μm linear accuracy, and ±32° reflection angle, meeting the measurement needs of complex and precise small parts.
    Product Details Request a Trial Add to Favorites
