Front Page Industrial Sensors Spectral Confocal Displacement Sensor SCI Series SCI03560
Product Specifications
Accessories
Downloads
Case Studies
Related Products

Category

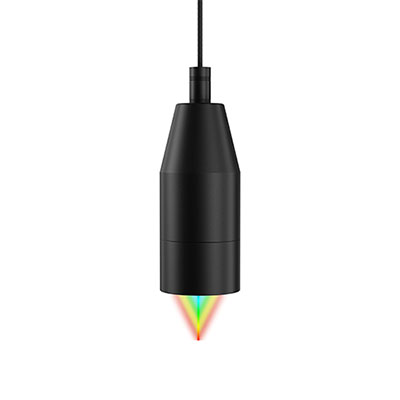

SCI03560

SCI03560

Spot size: 5.8μm/12.2μm

Working distance: 12.8mm

Linearity: ±0.7μm

Angular characteristics: ±60°

Minimum measurable transparent object thickness: 150μm

Request a trial Join for comparison

Favorites Saved to favorites

  • SCI03560
  • SCI03560
  • SCI03560

    • Compliant with CE/FCC/KC Standards

    Product Specifications
    Model SCI03560
    Controller SCI501A/SCI502A，SCI501B/SCI502B
    Fixture model SCI-02
    Spot size（μm） 5.8/12.2 μm
    Working distance（mm） 12.8 mm
    Measuring range（mm） 3.5 mm
    Resolution（μm） 0.006 μm
    Linearity（μm） ±0.7 μm
    Angle characteristic ±60°
    Minimum measurable transparent object thickness（μm） 150 μm
    Diameter 83 mm
    Diameter（mm） 229 mm
    Length（mm） 2300 g
    Weight（g） 24VDC±10%
    Power supply voltage 35%~85%RH (no condensation)
    Shell material Aluminium alloy

    Accessories

    SCI501A

    SCI501A
    SCI501B

    SCI501B
    SCI502A

    SCI502A
    SCI502B

    SCI502B
    SCB-F50-MPO-HA1Y

    SCB-F50-MPO-HA1Y
    SCB-F105-MPO-HA1Y

    SCB-F105-MPO-HA1Y

    Downloads

    SinceVision-SCI03560 Parameter

    SinceVision-SCI03560 Parameter

    PDF / 211.82KB

    Product Specifications

    Download Now Add to Download List Share file link

    Case Studies

    点光谱透明玻璃厚度检测

    点光谱透明玻璃厚度检测

    Consumer Electronics Spectral Confocal Displacement Sensor
    Measurement of Mobile Phone Lens Thickness

    Measurement of Mobile Phone Lens Thickness

    Consumer Electronics Spectral Confocal Displacement Sensor

    Related Products

    SCI01236

    SCI01236

    25mm long range & ±2.4μm linear accuracy，±36°large reflection angle，minimum measurable thickness of transparent objects：35μm
    Product Details Request a Trial Add to Favorites
    SCI20011

    SCI20011

    70mm long range & ±2.2μm linear accuracy, ±11° large reflection angle, minimum measurable thickness of transparent objects: 660μm
    Product Details Request a Trial Add to Favorites
    SCI10015

    SCI10015

    40mm working distance & ±1.6μm linear accuracy, ±15° wide reflection angle, minimum measurable thickness of transparent objects: 300μm
    Product Details Request a Trial Add to Favorites
    SCI04025

    SCI04025

    16mm working distance & ±0.8μm linear accuracy, ±25° large reflection angle, minimum measurable thickness of transparent objects: 130μm
    Product Details Request a Trial Add to Favorites
    SCI04020

    SCI04020

    This spectral confocal displacement sensor features a 40mm working distance, ±0.8μm linear accuracy, and a large ±20° reflection angle, meeting the inspection requirements of high-end equipment such as imaging systems.
    Product Details Request a Trial Add to Favorites
    SCI01045

    SCI01045

    A spectral confocal displacement sensor with a 10mm working distance, ±0.2μm linear accuracy, and ±45° reflection angle, meeting the measurement needs of precision small parts.
    Product Details Request a Trial Add to Favorites
    SCI00532

    SCI00532

    25mm working distance, ±0.2μm linear accuracy, and ±32° reflection angle, meeting the measurement needs of complex and precise small parts.
    Product Details Request a Trial Add to Favorites
