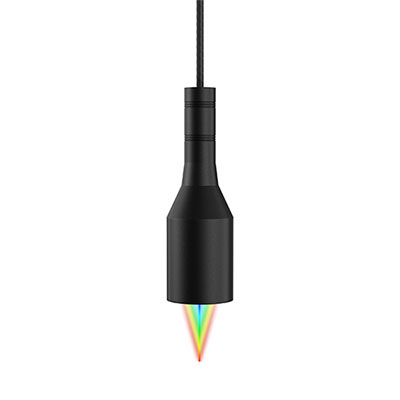

SCI01045

SCI01045

Spot size: 7.1μm/14.9μm

Working distance: 10mm

Linearity: ±0.2μm

Angular characteristics: ±45°

Minimum measurable transparent object thickness: 30μm

Request a trial Join for comparison

Favorites Saved to favorites

  • SCI01045
  • SCI01045
  • SCI01045

    • Compliant with CE/FCC/KC Standards

    Product Specifications
    Model SCI01045
    Controller SCI501A/SCI502A，SCI501B/SCI502B
    Fixture model SCI-01
    Spot size（μm） 7.1/14.9 μm
    Working distance（mm） 10 mm
    Measuring range（mm） 1 mm
    Resolution（μm） 0.006 μm
    Linearity（μm） ±0.2 μm
    Angle characteristic ±45°
    Minimum measurable transparent object thickness（μm） 30 μm
    Diameter 47 mm
    Diameter（mm） 148.6 mm
    Length（mm） 350 g
    Weight（g） 24VDC±10%
    Power supply voltage 35%~85%RH (no condensation)
    Shell material Aluminium alloy
