Front Page Industrial Sensors Spectral Confocal Displacement Sensor SCI Series SCI00532
Product Specifications
Accessories
Downloads
Case Studies
Related Products

Category

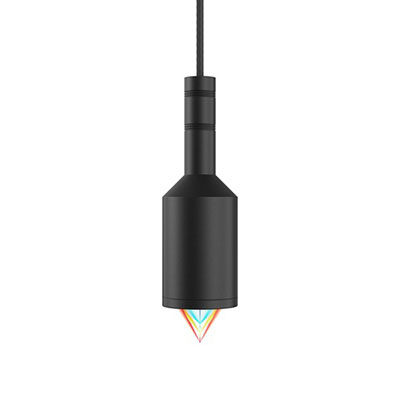

SCI00532

SCI00532

Spot size: 7μm/14μm

Working distance: 25mm

Linearity: ±0.2μm

Angular characteristics: ±32°

Minimum measurable transparent object thickness: 20μm

Request a trial Join for comparison

Favorites Saved to favorites

Product Specifications
Model SCI00532
Controller SCI501A/SCI502A，SCI501B/SCI502B
Fixture model SCI-01
Spot size（μm） 7/14 μm
Working distance（mm） 25 mm
Measuring range（mm） 0.5 mm
Resolution（μm） 0.006 μm
Linearity（μm） ±0.2 μm
Angle characteristic ±32°
Minimum measurable transparent object thickness（μm） 20 μm
Diameter 53 mm
Diameter（mm） 159.7 mm
Length（mm） 535 g
Weight（g） 24VDC±10%
Power supply voltage 35%~85%RH (no condensation)
Shell material Aluminium alloy

Accessories

SCB-F50-MPO-HA1Y

SCB-F50-MPO-HA1Y
SCB-F105-MPO-HA1Y

SCB-F105-MPO-HA1Y
SCI501A

SCI501A
SCI501B

SCI501B
SCI502A

SCI502A
SCI502B

SCI502B

Downloads

SinceVision-Software User Manual-SG-SGI-SC-SCI Series_Communication Library

SinceVision-Software User Manual-SG-SGI-SC-SCI Series_Communication Library

ZIP / 1.6MB

Technical Guide

Download Now Add to Download List Share file link

SinceVision-SG-imaging software user manual for SGSCI SGIseries displacement sensor

SinceVision-SG-imaging software user manual for SGSCI SGIseries displacement sensor

PDF / 7.51MB

Technical Guide

Download Now Add to Download List Share file link

SinceVision-SCI Documentation

SinceVision-SCI Documentation

ZIP / 3.8MB

Technical Guide

Download Now Add to Download List Share file link

SinceVision-SCI Hardware User Manual

SinceVision-SCI Hardware User Manual

ZIP / 9.65MB

Technical Guide

Download Now Add to Download List Share file link

SinceVision-SCI Software User Manual

SinceVision-SCI Software User Manual

ZIP / 15.37MB

Technical Guide

Download Now Add to Download List Share file link

Case Studies

点光谱透明玻璃厚度检测

点光谱透明玻璃厚度检测

Consumer Electronics Spectral Confocal Displacement Sensor
Measurement of Mobile Phone Lens Thickness

Measurement of Mobile Phone Lens Thickness

Consumer Electronics Spectral Confocal Displacement Sensor

Related Products

SCI01236

SCI01236

25mm long range & ±2.4μm linear accuracy，±36°large reflection angle，minimum measurable thickness of transparent objects：35μm
Product Details Request a Trial Add to Favorites
SCI20011

SCI20011

70mm long range & ±2.2μm linear accuracy, ±11° large reflection angle, minimum measurable thickness of transparent objects: 660μm
Product Details Request a Trial Add to Favorites
SCI10015

SCI10015

40mm working distance & ±1.6μm linear accuracy, ±15° wide reflection angle, minimum measurable thickness of transparent objects: 300μm
Product Details Request a Trial Add to Favorites
SCI04025

SCI04025

16mm working distance & ±0.8μm linear accuracy, ±25° large reflection angle, minimum measurable thickness of transparent objects: 130μm
Product Details Request a Trial Add to Favorites
SCI04020

SCI04020

This spectral confocal displacement sensor features a 40mm working distance, ±0.8μm linear accuracy, and a large ±20° reflection angle, meeting the inspection requirements of high-end equipment such as imaging systems.
Product Details Request a Trial Add to Favorites
SCI03560

SCI03560

With a 12.8mm working distance and ±0.7μm linear accuracy, and a wide ±60° reflection angle, this spectral confocal displacement sensor is ideal for measuring objects of any shape or material.
Product Details Request a Trial Add to Favorites
SCI01045

SCI01045

A spectral confocal displacement sensor with a 10mm working distance, ±0.2μm linear accuracy, and ±45° reflection angle, meeting the measurement needs of precision small parts.
Product Details Request a Trial Add to Favorites
