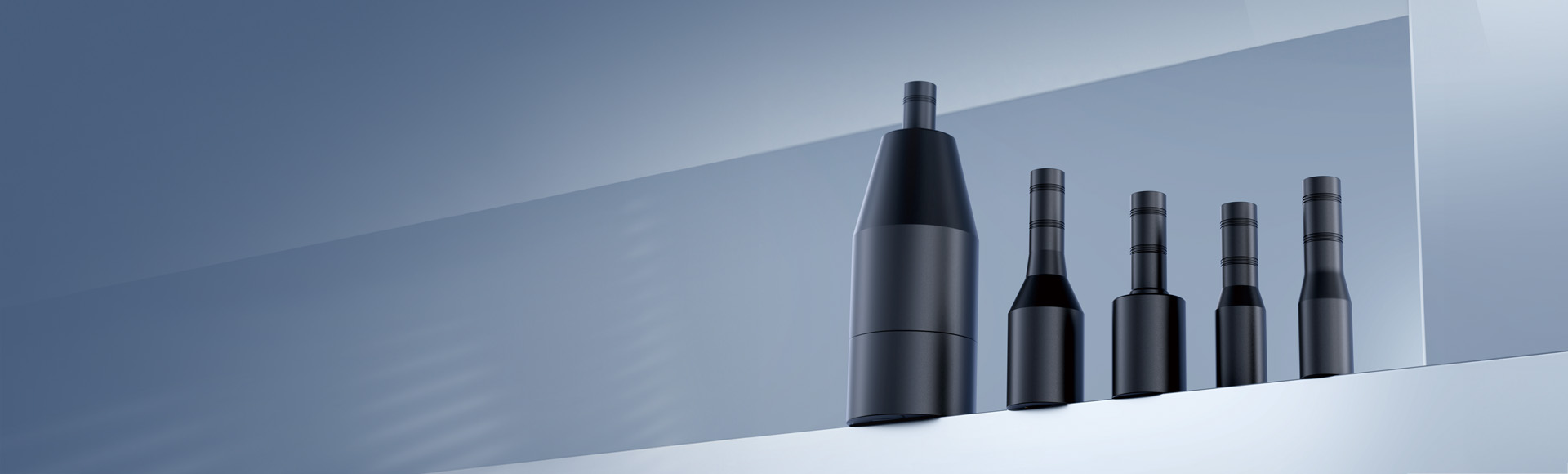

Spectral Confocal Displacement Sensor
Spectral confocal displacement sensors provide a premium solution for precise distance and thickness measurement without touching the target object. Using advanced light spectrum technology, these sensors reach sub-micron accuracy and a resolution of 0.006μm. They are work on difficult surfaces including clear glass, mirrored metals, and rough materials.
Product Advantages
Product Matrix
Product Selection
| Model | Spot size（μm） (μm) | Working distance（mm） (mm) | Measuring range（mm） (mm) | Resolution（μm） (μm) | Linearity（μm） (μm) | Angle characteristic | Minimum measurable transparent object thickness（μm） (μm) | Product Status | Compare | Favorites |
|---|---|---|---|---|---|---|---|---|---|---|
| SCI20011 | 55/115 | 70 | 20 | 0.025 | ±2.2 | ±11° | 660 | Published |
|
|
| SCI10015 | 19.2/40.3 | 40 | 10 | 0.012 | ±1.6 | ±15° | 300 | Published |
|
|
| SCI04020 | 16/32 | 40 | 4 | 0.006 | ±0.8 | ±20° | 130 | Published |
|
|

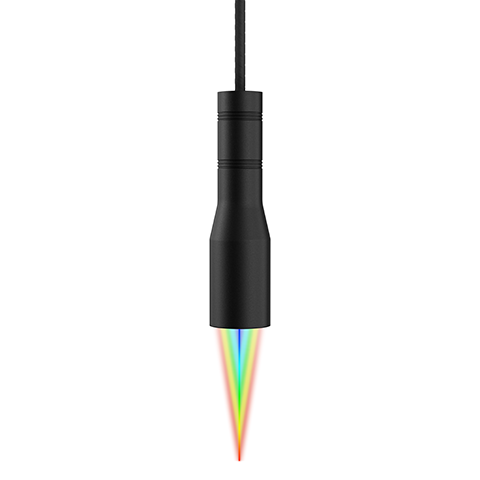

| SCI04025 | 12/25.2 | 16 | 4 | 0.006 | ±0.8 | ±25° | 130 | Published |
|
|
| SCI03560 | 5.8/12.2 | 12.8 | 3.5 | 0.006 | ±0.7 | ±60° | 150 | Published |
|
|
| SCI01236 | 55/115 | 25 | 1.2 | 0.006 | ±0.24 | ±36° | 35 | Published |
|
|

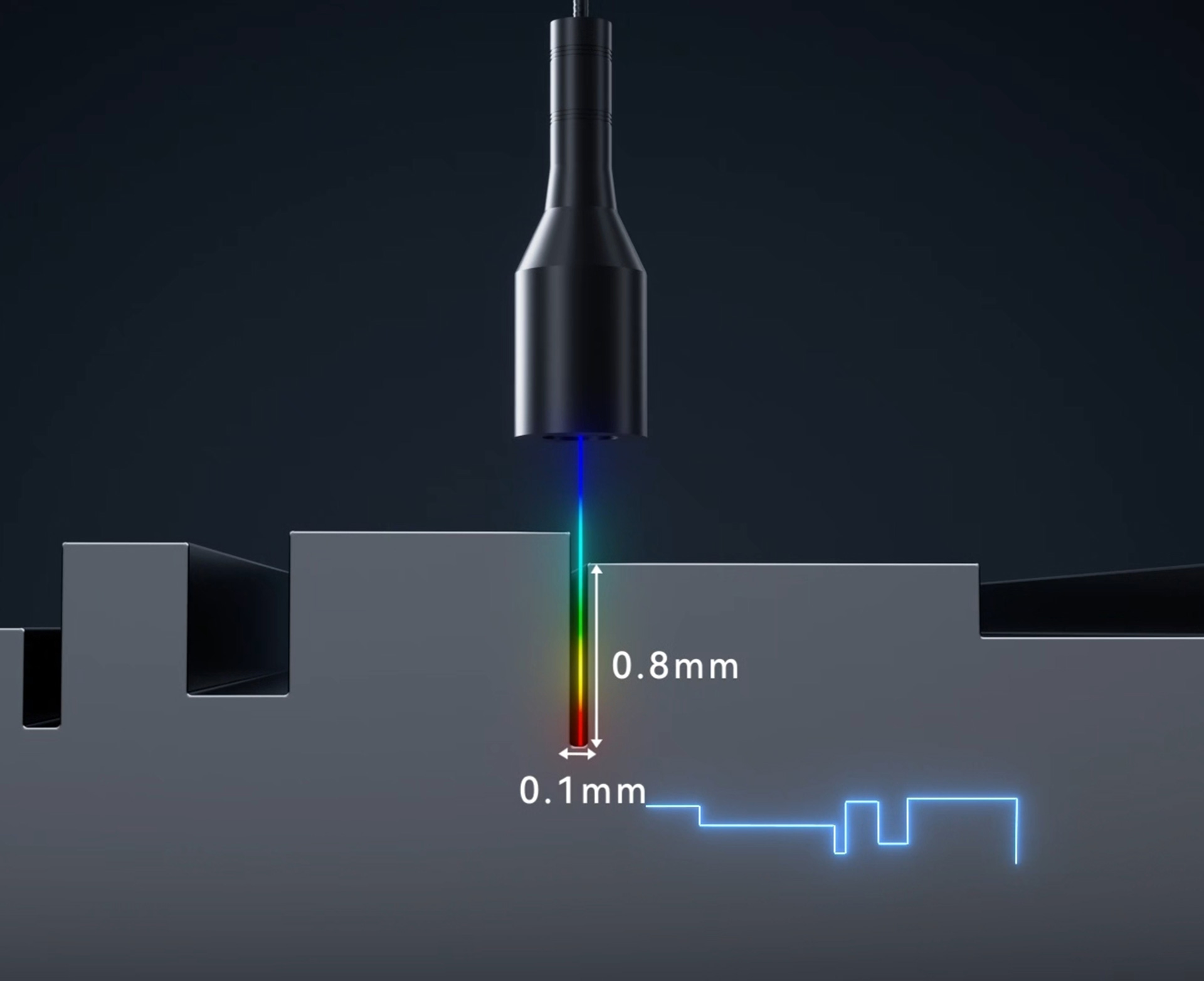

| SCI01045 | 7.1/14.9 | 10 | 1 | 0.006 | ±0.2 | ±45° | 30 | Published |
|
|
| SCI00532 | 7/14 | 25 | 0.5 | 0.006 | ±0.2 | ±32° | 20 | Published |
|
|
File
SinceVision-SG-imaging software user manual for SGSCI SGIseries displacement sensor
PDF / 7.51MB
Technical Guide
Download Now
Add to Download List
SinceVision-Software User Manual-SG-SGI-SC-SCI Series_Communication Library
ZIP / 1.6MB
Technical Guide
SinceVision-SCI Documentation
ZIP / 3.8MB
Technical Guide
SinceVision-SCI Hardware User Manual
ZIP / 9.65MB
Technical Guide
SinceVision-SCI Software User Manual
ZIP / 15.37MB
Technical Guide
SinceVision-SCI20011 Parameter
ZIP / 16.2KB
Product Specifications
SinceVision-SCI10015 Parameter
PDF / 239.11KB
Product Specifications
SinceVision-SCI04025 Parameter
PDF / 215.47KB
Product Specifications
SinceVision-SCI03560 Parameter
PDF / 211.82KB
Product Specifications
SinceVision-SCI01045 Parameter
PDF / 234.66KB
Product Specifications

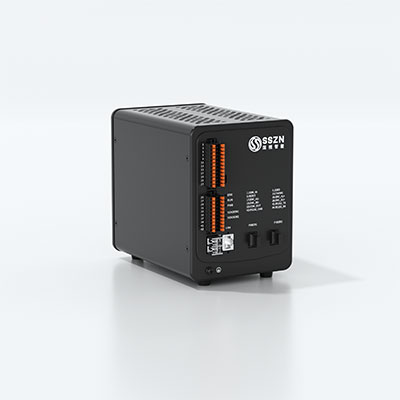

SinceVision-SCI Controller Technical Specification
PDF / 269.74KB
Product Specifications
SinceVision-SG-imaging software user manual for SGSCI SGIseries displacement sensor
PDF / 7.51MB
Technical Guide
SinceVision-Software User Manual-SG-SGI-SC-SCI Series_Communication Library
ZIP / 1.6MB
Technical Guide
SinceVision-SCI Documentation
ZIP / 3.8MB
Technical Guide
SinceVision-SCI Hardware User Manual
ZIP / 9.65MB
Technical Guide
SinceVision-SCI Software User Manual
ZIP / 15.37MB
Technical Guide
SinceVision-SCI20011 Parameter
ZIP / 16.2KB
Product Specifications
SinceVision-SCI10015 Parameter
PDF / 239.11KB
Product Specifications
SinceVision-SCI04025 Parameter
PDF / 215.47KB
Product Specifications
SinceVision-SCI03560 Parameter
PDF / 211.82KB
Product Specifications
SinceVision-SCI01045 Parameter
PDF / 234.66KB
Product Specifications
SinceVision-SCI Controller Technical Specification
PDF / 269.74KB
Product Specifications
FAQs
-
1. What is a Spectral Confocal Displacement Sensor, and how does it work?
A spectral confocal sensor is a high-precision, non-contact measuring device that uses the principle of chromatic aberration to determine distance or thickness. Unlike standard laser sensors that use a single focal point, spectral confocal technology splits white light into a spectrum of colors, each focusing at a different distance. The sensor identifies the specific wavelength (color) reflected back to calculate the exact position of the target with sub-micron resolution.
-
2. What makes the SCI Series better than traditional laser sensors?
The SCI Series excels in "difficult" measurement scenarios where laser triangulation often fails:

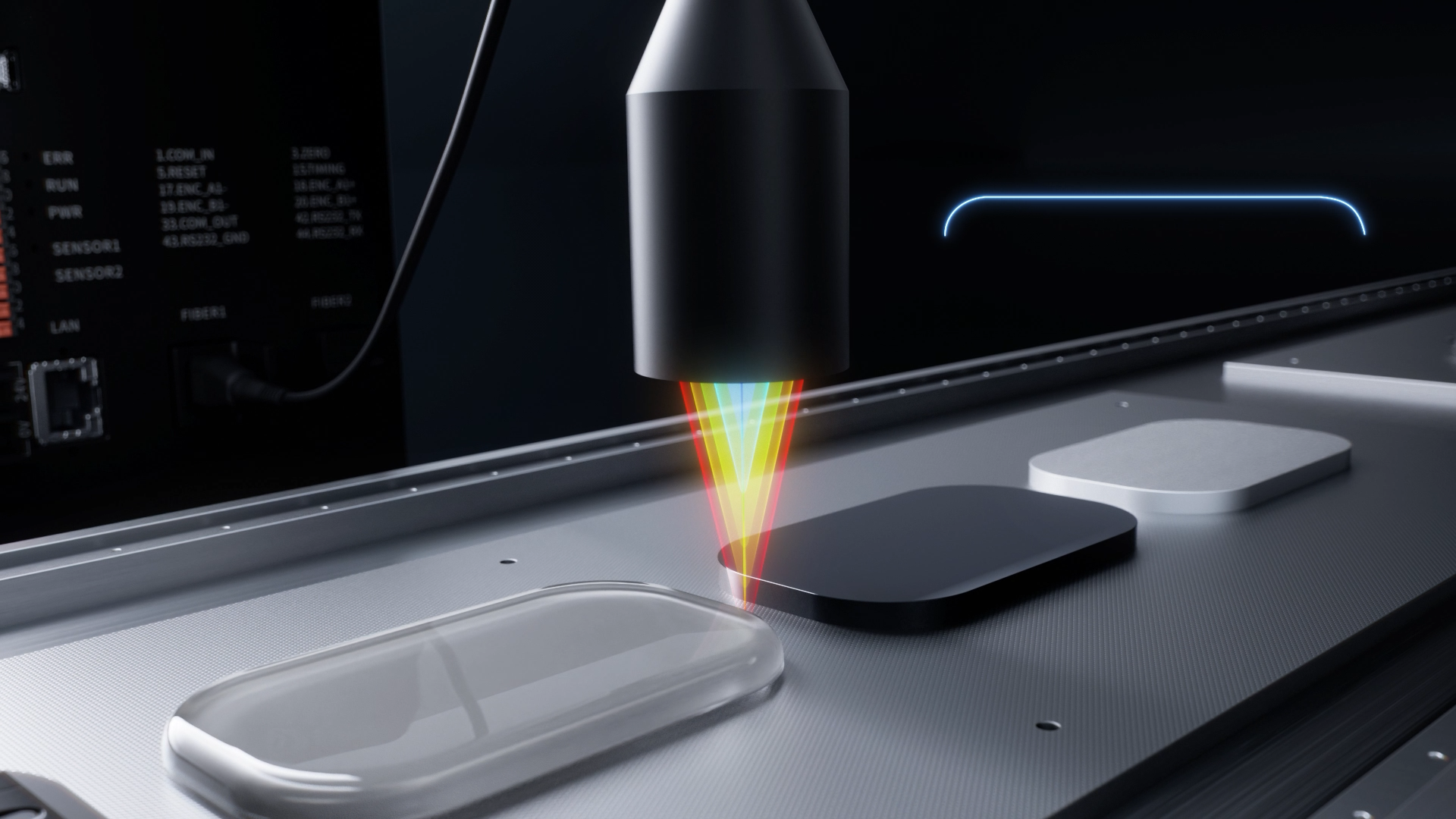

1. Material Versatility: It accurately measures transparent, highly reflective (mirrored), and very rough surfaces.

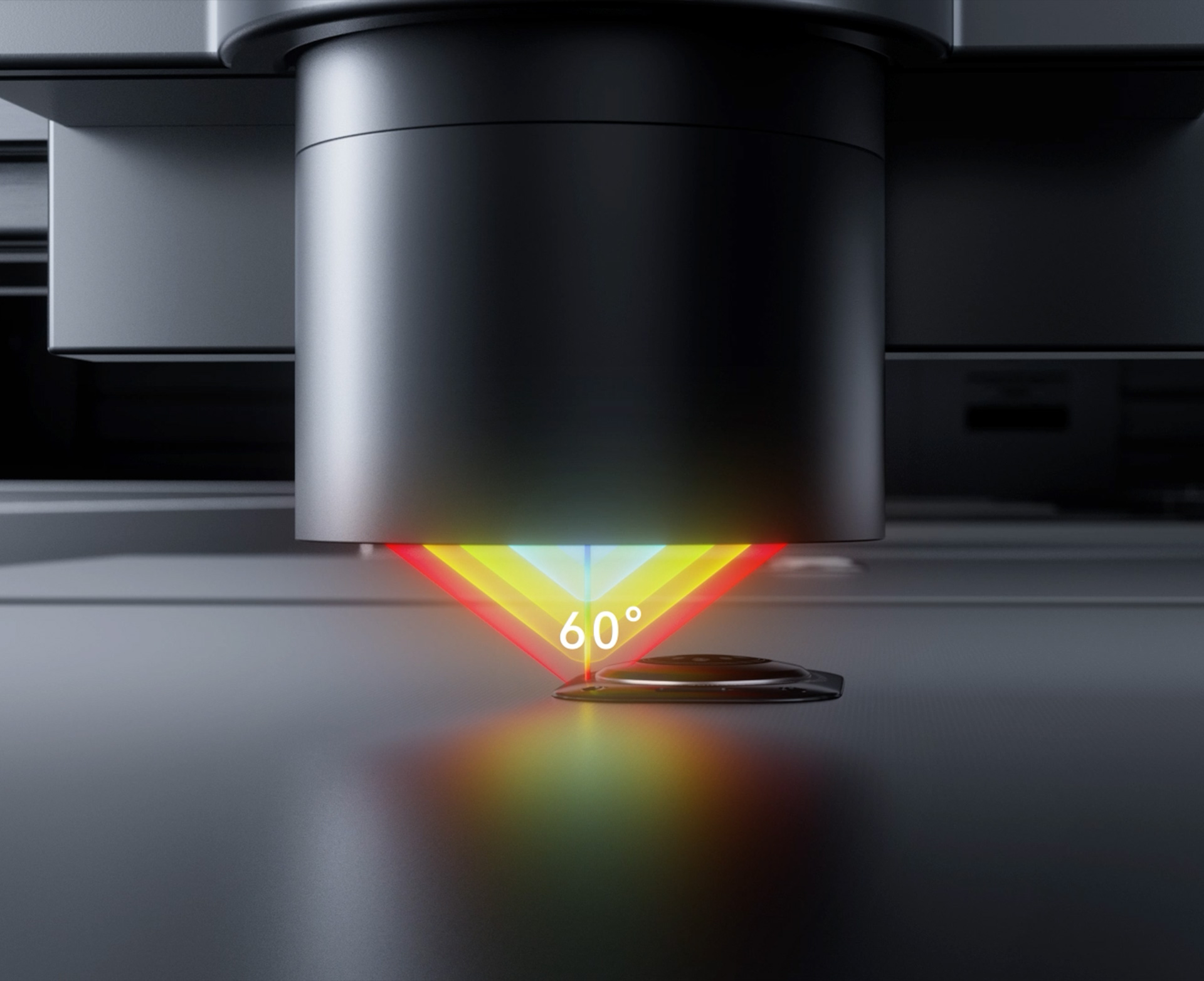

2. Steep Angles: It supports a maximum reflection angle of ±60°, allowing for the measurement of high-curvature or slanted surfaces.
3. No Shadowing: Because the light source and receiver are on the same axis (coaxial), it can measure deep holes and narrow gaps without the "shadowing" effect seen in laser triangulation sensors.
-

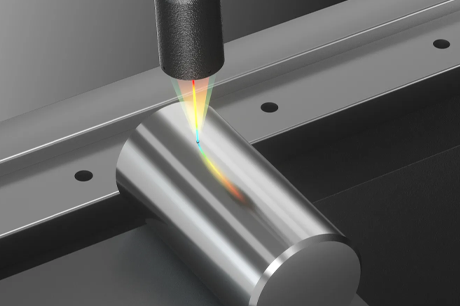

3. Which industries benefit most from SinceVision Spectral Confocal technology?
SCI Series is widely used in sectors requiring high-precision sub-micron data:
1. Consumer Electronics: Laptop keyboard flatness and curved screen edge detection.
2. Semiconductors: Wafer flatness, thickness detection, and laser scribing guidance.
3. New Energy: Electrode tab thickness on coating rollers and solar panel gap detection
4. Glass & Film: Thickness detection of flexible multilayer glass and sealing parts.
-

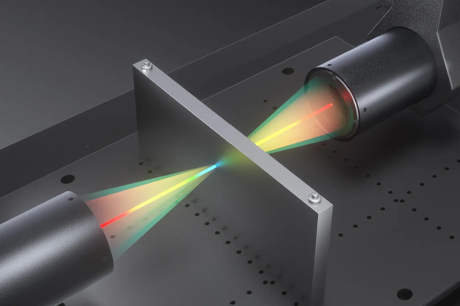

4. Can the SCI Series measure the thickness of transparent layers?
Yes. SinceVision SCI sensors are specifically designed for multi-layer thickness measurement. By capturing reflections from both the top and bottom surfaces of a transparent material, the sensor can calculate the absolute thickness of glass, films, and coatings with micron-level accuracy.
-

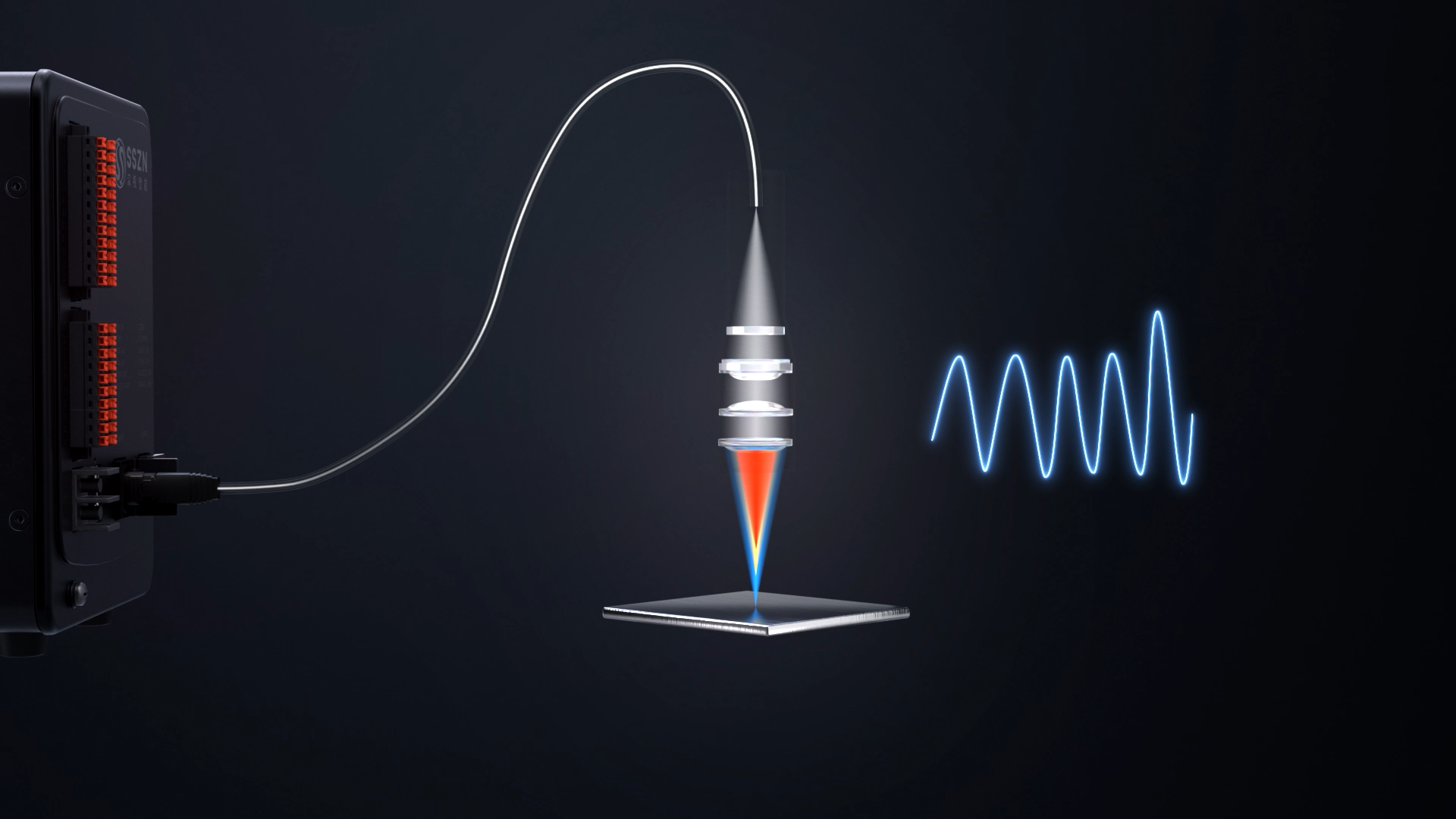

5. What is the maximum sampling speed of the SCI Series?
SCI Series offers an ultra-high sampling frequency of up to 33kHz. This makes it one of the fastest spectral confocal sensors in the industry, ideal for real-time quality inspection on high-speed automated production lines.
Note: When operating at 20kHz or 33kHz, the measuring range is typically shortened to 80% and 40% of the original range, respectively.
