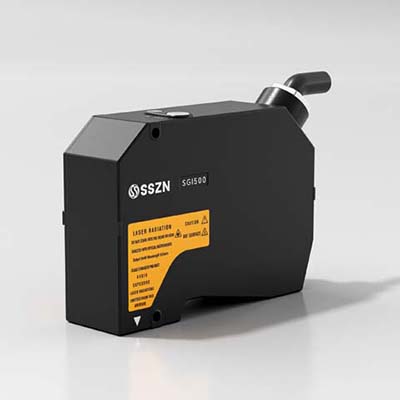

SGI500

Repeatability: 2μm

Working distance: 500mm

Linearity: 250mm-450mm: ±0.02% F.S.; 250mm-750mm: ±0.05% F.S.; 250mm-1150mm: ±0.1% F.S.

Sampling frequency: 1k-88kHz

Wide spot/small spot type: 500*6000μm/Φ500μm

Temperature characteristic: 0.01% F.S./℃

Favorites Saved to favorites

CE, FCC compliant

Product Specifications


Model	SGI500
Reference distance (RF)	500 mm
Measuring range	-650~250 mm
Light source wavelength	655 nm
Laser class	Class II
Spot size (Reference distance)	Φ500 μm
Repeatability	2 μm
Linearity	250mm-450mm：±0.02%F.S.；250mm-750mm：±0.05%F.S.；250mm-1150mm：±0.1%F.S.
Temperature characteristics	0.01% F.S./℃
Sampling refresh rate	1/2/5/10/20/50/88 kHz
Communication port	1 100Base-TX/1000Base-T Ethernet interface，1 RS485
Analog output	1-channel analog outputs，supports analog voltage and analog current switching
IO input	2 channels timing，zeroing and single-ended encoder function multiplexing
IO output	4 channel，determines status of output
Operating temperature	0～50 ℃
Storage temperature	-20～70 ℃
Working humidity	35%-85% no condensation
ESD protection	Contact discharge 4kV，air discharge 8kV， conforms with IEC61000-4-2 standard
EFT protection	Power port 2kV/5 or 100kHz，signal port 1kV/5 or 100kHz， conforms with IEC61000-4-4
Bumps	50Gs/3ms on each axis， conforms with IEC 68-2-27 Ea
Vibrations	10Gs (10-500Hz)， conforms with IEC 68-2-6 Fc
IP level	IP67， conforms with IEC 60529 standard
Dimensions	1198535 mm
Weight (including cable)	380 g
