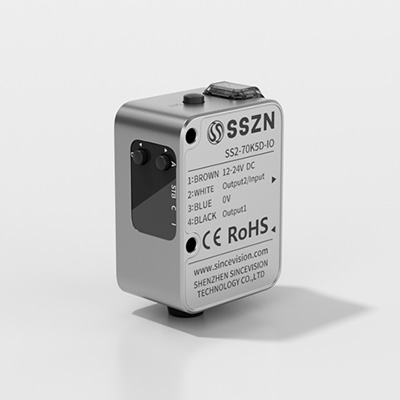

SS2-70K5D

Technical approach: White light spot

Working distance: 30-70mm

Sampling frequency: 5KHz

Communication method: RS-485 ; IO,IO-link

Multiple functions: Multi-color detection, timer, anti-interference...

Request a trial

Join for comparison

Favorites Saved to favorites

Product Specifications


Model	SS2-70K5D
Measuring range(mm)	30-70 mm
Minimum spot size	About1.6 x2.9mm @ 50 mm
Power supply voltage	12~24V DC including ±10% ripple (P-P)
Current consumption	≤60mA 24VDC (without load)≤110mA 12VDC (without load)
Response time	200μs/500μs/1ms/10ms/100ms/500ms switchable
Light source	White LED
Anti-interference function	Set different frequencies up to 2 sets
Timer	Off/On Delay/Off Delay/Single shot
Connection mode	4-core 2m trailing cable 4-core 0.3m trailing cable with aviation plug
Control output	NPN open collector /PNP open collector switchable ≤30V ≤50mA and residual voltage ≤ 2VN.O./N.C switchable
External input	Calibration/stop lighting switchable Short circuit current: NPN:≤1mA/PNP:≤2mA. Please refer to the wiring diagram for loading voltage and the timing diagram for input time.
Communication method	RS-485 ; IO，IO-link
Power saving mode	It is not turned on by default. After the power-saving mode is turned on the display numbers will be automatically turned off after all the buttons have not been operated for 15s and any button can be pressed to return to normal.
Protective circuit	Power reverse connection protection/ power surge protection /output overcurrent protection /output reverse connection protection /output overload protection and output short circuit protection.
EMC	EMC Directive (2014/30/EU)
Protection grade (outer case)	IP67(IEC60529)
Ambient illumination	Incandescent lamp: ≤10000x; Sunshine: ≤20000k
Ambient temperature and humidity	-20 ~ 50°C /35~85%RH (no condensation and frost)
Vibration resistance	10~55Hz/ double amplitude of 1.5mm/ 2 hours in X/Y/Z direction
Impact resistance	1000m/s2/ 6 times in X/Y/Z direction
Environmental protection	RoHS directive (2011/65/EU) RoHS of China (No.32)
Dimension(mm)	4734.523 mm
Material	Shell: aluminum alloy; Indicator LED cover +PC key: PC+ABS Lens cover: glass; Cable and sheath: PVCDisplay cover: with anti-damage coating PMMA
Weight(including 2m cable)g	100 g
