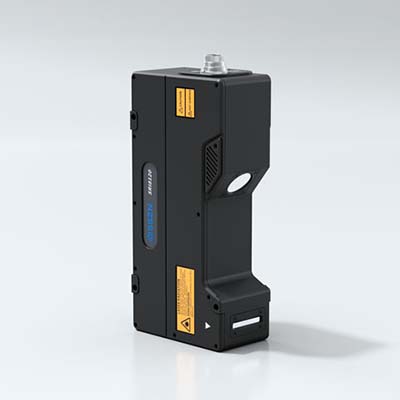

SRI8120

SRI8120

X-axis width: 73-100mm

Scanning speed: 2300-67000Hz

Z-axis linearity: ±0.01% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial

Join for comparison

Favorites Saved to favorites

SRI8120

Compliant with FCC Standards

Product Specifications


Model	SRI8120
Reference distance (CD)	118 mm
Z-axis height (FS)	68 mm
X-axis width - Near-end	73 mm
X-axis width - Reference distance	84 mm
X-axis width - far end	100 mm
Light source wavelength	405 nm
Laser Class	2M
Laser output power	10 mW
Z-axis repeatability	0.45 μm
X-axis repeatability	7.5 μm
X-axis data interval	30 μm
Z-axis linearity	±0.01 % F.S.
Number of X-axis contour points	3200
Scanning speed	2300-67000 HZ
Weight	1200 g
Size	2005494.5 mm
Operating temperature	0~50 ℃
Storage temperature	-20~70 ℃
Operating voltage	24VDC±10%
Communication methods	1 × 100Base-TX / 1000Base-T Ethernet port
Shell material	aluminum alloy
