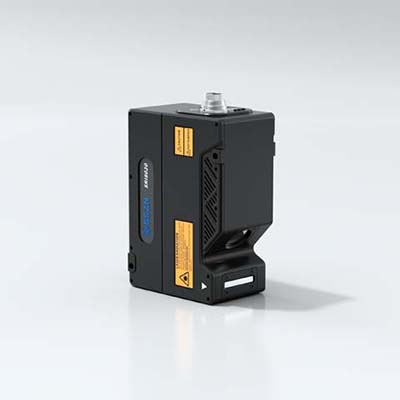

SRI8020

SRI8020

X-axis width: 13~16mm

Scanning speed: 3200~67000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial Join for comparison

Favorites Saved to favorites

  • SRI8020

    • Compliant with FCC Standards

    Product Specifications
    Model SRI8020
    Reference distance (CD) 23 mm
    Z-axis height (FS) 5.2 mm
    X-axis width - Near-end 13 mm
    X-axis width - Reference distance 14.5 mm
    X-axis width - far end 16 mm
    Light source wavelength 405 nm
    Laser Class 2M
    Laser output power 10 mW
    Z-axis repeatability 0.1 μm
    X-axis repeatability 1.5 μm
    X-axis data interval 5 μm
    Z-axis linearity ±0.02 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 3200-67000 HZ
    Weight 970 g
    Size 135.5*58*98 mm
    Operating temperature 0~50 ℃
    Storage temperature -20~70 ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy

    Accessories

    SCB-HIO-HR2Z

    SCB-HIO-HR2Z
    SCB-HIO-HB2Z

    SCB-HIO-HB2Z
    SCB-HNET-HR2Z

    SCB-HNET-HR2Z
    SCB-HNET-HB2Z

    SCB-HNET-HB2Z
