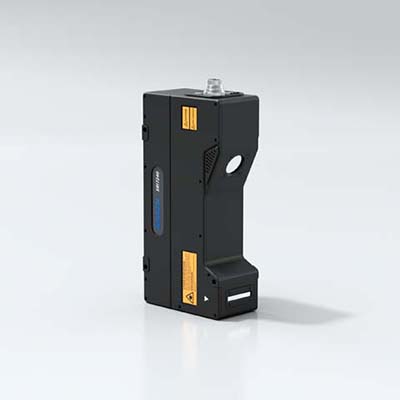

SRI7240

SRI7240

X-axis width: 115-185mm

Scanning speed: 1500~20000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial Join for comparison

Favorites Saved to favorites

  • SRI7240

    • Compliant with FCC Standards

    Product Specifications
    Model SRI7240
    Reference distance (CD) 240 mm
    Z-axis height (FS) 153 mm
    X-axis width - Near-end 115 mm
    X-axis width - Reference distance 142 mm
    X-axis width - far end 185 mm
    Light source wavelength 405 nm
    Laser Class 2M
    Laser output power 10 mW
    Z-axis repeatability 1 μm
    X-axis repeatability 13 μm
    X-axis data interval 50 μm
    Z-axis linearity ±0.02 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 1500-20000 HZ
    Weight 1200 g
    Size 200*54*100 mm
    Operating temperature 0~50 ℃
    Storage temperature -20~70 ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy
