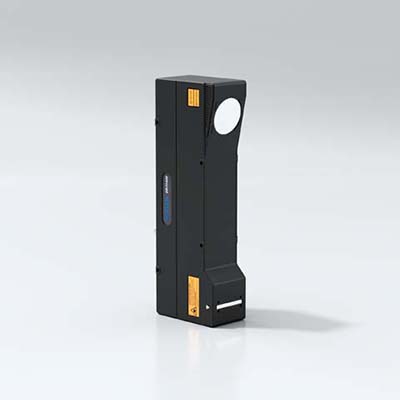

SRI71600

SRI71600

X-axis width: 745-2250mm

Scanning speed: 2500-20000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 450nm/660nm

Laser grade: 3R

Request a trial Join for comparison

Favorites Saved to favorites

  • SRI71600

    • Compliant with FCC Standards

    Product Specifications
    Model SRI71600
    Reference distance (CD) 1070 mm
    Z-axis height (FS) 1530 mm
    X-axis width - Near-end 745 mm
    X-axis width - Reference distance 1120 mm
    X-axis width - far end 2250 mm
    Light source wavelength 450/660 nm
    Laser Class 3R
    Laser output power 50 mW
    Z-axis repeatability 100 μm
    X-axis repeatability 150 μm
    X-axis data interval 500 μm
    Z-axis linearity ±0.02 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 2500-20000 HZ
    Weight 1850 g
    Size 294.5*59*102 mm
    Operating temperature 0~50 ℃
    Storage temperature -20~70 ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy
