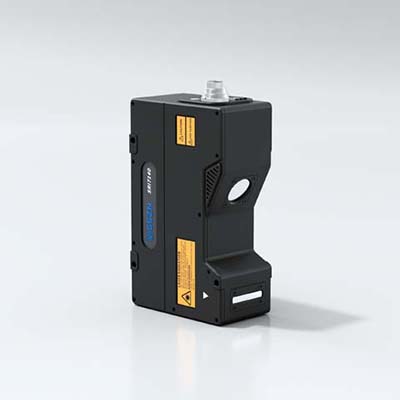

SRI7140

SRI7140

X-axis width: 70-110mm

Scanning speed: 1500~20000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm/660nm

Laser grade: 2M

Request a trial Join for comparison

Favorites Saved to favorites

  • SRI7140

    • Compliant with FCC Standards

    Product Specifications
    Model SRI7140
    Reference distance (CD) 140 mm
    Z-axis height (FS) 88 mm
    X-axis width - Near-end 70 mm
    X-axis width - Reference distance 86 mm
    X-axis width - far end 110 mm
    Light source wavelength 405/660 nm
    Laser Class 2M
    Laser output power 10 mW
    Z-axis repeatability 0.5 μm
    X-axis repeatability 7.5 μm
    X-axis data interval 30 μm
    Z-axis linearity ±0.02 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 1500-20000 HZ
    Weight 1000 g
    Size 155.5*54*94.5 mm
    Operating temperature 0~50 ℃
    Storage temperature -20~70 ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy

    Accessories

    SCB-HIO-HR2Z

    SCB-HIO-HR2Z
    SCB-HIO-HB2Z

    SCB-HIO-HB2Z
    SCB-HNET-HR2Z

    SCB-HNET-HR2Z
    SCB-HNET-HB2Z

    SCB-HNET-HB2Z

    Downloads

    SinceVision-SRI7140 Installation Diagram

    SinceVision-SRI7140 Installation Diagram

    PDF / 173.83KB

    Product Specifications

    Download Now Add to Download List Share file link

    SinceVision-SRI7140 Parameter

    SinceVision-SRI7140 Parameter

    PDF / 252.57KB

    Product Specifications

    Download Now Add to Download List Share file link

    Case Studies

    3D Bezier Curve Solution

    3D Bezier Curve Solution

    Mechanical Manufacturing 3D Sensor
    Cross-Section Profile Measurement of Irregular Automotive Sealing Strips

    Cross-Section Profile Measurement of Irregular Automotive Sealing Strips

    Automotive 3D Sensor
    3D Vision-Guided Intelligent Robotic Welding

    3D Vision-Guided Intelligent Robotic Welding

    Mechanical Manufacturing 3D Sensor

    Related Products

    SRI7050

    SRI7050

    Z-axis repeatability: 0.2 μm, scanning speed: 1500-20000 Hz, X-axis line width: 26-30 mm
    Product Details Request a Trial Add to Favorites
    SRI7060

    SRI7060

    Z-axis repeatability: 0.3 μm, scanning speed: 1500-20000 Hz, X-axis width: 34-49 mm
    Product Details Request a Trial Add to Favorites
    SRI7080

    SRI7080

    Z-axis repeatability: 0.4 μm, scanning speed: 1500-20000 Hz, X-axis width: 51-69 mm
    Product Details Request a Trial Add to Favorites
    SRI7140

    SRI7140

    Z-axis repeatability: 0.5 μm, scanning speed: 1500-20000 Hz, X-axis width: 70-110 mm
    Product Details Request a Trial Add to Favorites
    SRI7240

    SRI7240

    Z-axis repeatability: 1μm, scanning speed: 1500-20000Hz, X-axis width: 115-185mm
    Product Details Request a Trial Add to Favorites
    SRI7300

    SRI7300

    Z-axis repeatability: 8μm, scanning speed: 2000-2000Hz, X-axis width: 225-540mm
    Product Details Request a Trial Add to Favorites
    SRI7400R

    SRI7400R

    Z-axis repeatability:5μm, scanning speed:1500-20000Hz, X-axis width:146-300mm
    Product Details Request a Trial Add to Favorites
    SRI7700

    SRI7700

    Z-axis repeatability:10μm, scanning speed:750-10000Hz, X-axis width:320-670mm
    Product Details Request a Trial Add to Favorites
