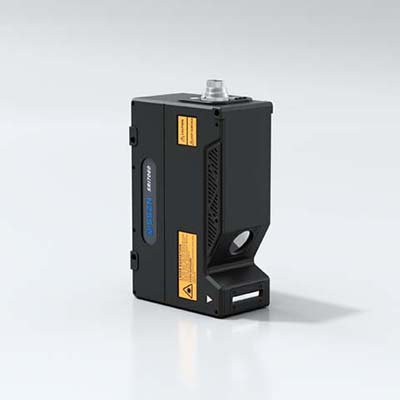

SRI7060

SRI7060

X-axis width: 34-49mm

Scanning speed: 1500~20000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial Join for comparison

Favorites Saved to favorites

  • SRI7060

    • Compliant with FCC Standards

    Product Specifications
    Model SRI7060
    Reference distance (CD) 60 mm
    Z-axis height (FS) 33 mm
    X-axis width - Near-end 34 mm
    X-axis width - Reference distance 40 mm
    X-axis width - far end 49 mm
    Light source wavelength 405 nm
    Laser Class 2M
    Laser output power 10 mW
    Z-axis repeatability 0.3 μm
    X-axis repeatability 4 μm
    X-axis data interval 15 μm
    Z-axis linearity ±0.02 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 1500-20000 HZ
    Weight 1020 g
    Size 150.5*54*94.5 mm
    Operating temperature 0~50 ℃
    Storage temperature -20~70 ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy
