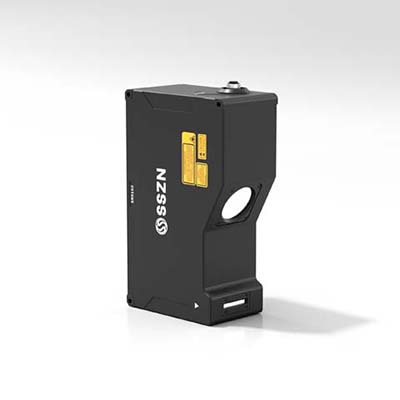

SR9160

SR9160

X-axis profile points: 6400

X-axis width: 84-120mm

Scanning speed: 1500~13000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial

Join for comparison

Favorites Saved to favorites

SR9160

SR9160

SR9160

Compliant with CE/KC/FCC Standards

Product Specifications


Model	SR9160
Reference distance (CD)	160 mm
Z-axis height (FS)	90 mm
X-axis width - Near-end	84 mm
X-axis width - Reference distance	99 mm
X-axis width - far end	120 mm
Light source wavelength	405 nm
Laser Class	2M
Laser output power	10 mW
Z-axis repeatability	1.5 μm
X-axis repeatability	4 μm
X-axis data interval	19 μm
Z-axis linearity	±0.02 % F.S.
Number of X-axis contour points	6400
Scanning speed	1500-13000 HZ
Weight	2020 g
Size	20512770.5 mm
Operating temperature	0~50 ℃
Storage temperature	-20~70 ℃
Operating voltage	24VDC±10%
Communication methods	1 × 100Base-TX / 1000Base-T Ethernet port
Shell material	aluminum alloy

Downloads

SinceVision-SR9160 installation diagram

SinceVision-SR9160 installation diagram

PDF / 310.97KB

Product Specifications

Add to Download List Share file link

SinceVision-SR9160 Parameters

SinceVision-SR9160 Parameters

PDF / 250.12KB

Product Specifications

Add to Download List Share file link
