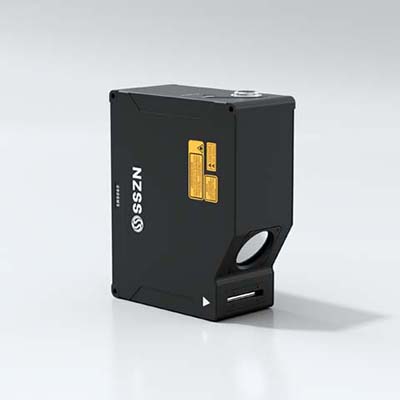

SR9060

SR9060

X-axis profile points: 6400

X-axis width: 36-42mm

Scanning speed: 1500~13000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial

Join for comparison

Favorites Saved to favorites

SR9060

SR9060

SR9060

符合CE/KC/FCC标准

Product Specifications


Model	SR9060
Reference distance (CD)	60 mm
Z-axis height (FS)	24 mm
X-axis width - Near-end	36 mm
X-axis width - Reference distance	39 mm
X-axis width - far end	42 mm
Light source wavelength	405 nm
Laser Class	2M
Laser output power	10 mW
Z-axis repeatability	0.4 μm
X-axis repeatability	1.5 μm
X-axis data interval	7 μm
Z-axis linearity	±0.02 % F.S.
Number of X-axis contour points	6400
Scanning speed	1500-13000 HZ
Weight	1940 g
Size	176145.569.4 mm
Operating temperature	0~50 ℃
Storage temperature	-20~70 ℃
Operating voltage	24VDC±10%
Communication methods	1 × 100Base-TX / 1000Base-T Ethernet port
Shell material	aluminum alloy

Downloads

SinceVision-SR9060 Installation diagram

SinceVision-SR9060 Installation diagram

PDF / 328.82KB

Product Specifications

Add to Download List Share file link

SinceVision-SR9060 Parameter

SinceVision-SR9060 Parameter

PDF / 256.81KB

Product Specifications

Add to Download List Share file link
