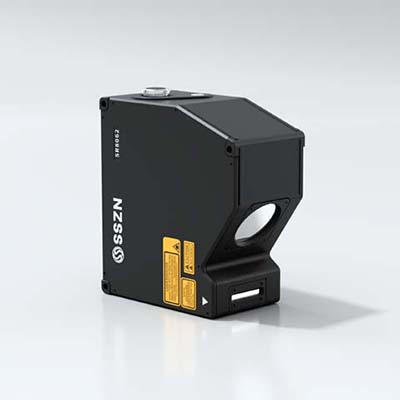

SR8062

SR8062

X-axis width: 16-17.6mm

Scanning speed: 2500-67000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial

Join for comparison

Favorites Saved to favorites

SR8062

SR8062

SR8062

Compliant with CE/KC/FCC Standards

Product Specifications


Model	SR8062
Reference distance (CD)	60 mm
Z-axis height (FS)	8.5 mm
X-axis width - Near-end	16 mm
X-axis width - Reference distance	17 mm
X-axis width - far end	17.6 mm
Light source wavelength	405 nm
Laser Class	2M
Laser output power	10 mW
Z-axis repeatability	0.15 μm
X-axis repeatability	1.5 μm
X-axis data interval	5.5 μm
Z-axis linearity	±0.02 % F.S.
Number of X-axis contour points	3200
Scanning speed	2500-67000 HZ
Weight	1500 g
Size	14269.5133 mm
Operating temperature	0~50 ℃
Storage temperature	-20~70 ℃
Operating voltage	24VDC±10%
Communication methods	1 × 100Base-TX / 1000Base-T Ethernet port
Shell material	aluminum alloy

Downloads

SinceVision-SR8062 Installation diagram

SinceVision-SR8062 Installation diagram

PDF / 1.07MB

Product Specifications

Add to Download List Share file link

SinceVision-SR8062 Parameter

SinceVision-SR8062 Parameter

PDF / 364.1KB

Product Specifications

Add to Download List Share file link
