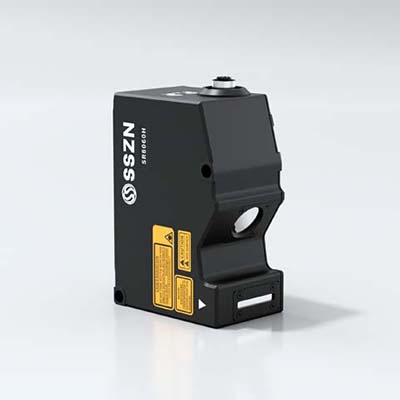

SR8060H

SR8060H

X-axis width: 13mm

Scanning speed: 10000-67000Hz

Z-axis linearity: ±0.05% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial Join for comparison

Favorites Saved to favorites

  • SR8060H
  • SR8060H
  • SR8060H

    • Compliant with CE/KC/FCC Standards

    Product Specifications
    Model SR8060H
    Reference distance (CD) 69 mm
    Z-axis height (FS) 6 mm
    X-axis width - Near-end 13 mm
    X-axis width - Reference distance 13 mm
    X-axis width - far end 13 mm
    Light source wavelength 405 nm
    Laser Class 2M
    Laser output power 10 mW
    Z-axis repeatability 0.2 μm
    X-axis repeatability 5 μm
    X-axis data interval 12 μm
    Z-axis linearity ±0.05 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 10000-67000 HZ
    Weight 650 g
    Size 126.5*84*55 mm
    Operating temperature 0~50 ℃
    Storage temperature -20~70 ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy

    Accessories

    SCB-HCAM-HB1

    SCB-HCAM-HB1
    SCB-HCAM-HR1

    SCB-HCAM-HR1
    SR7001 controller（2.5D）

    SR7001 controller（2.5D）
    SR7001 controller（3D）

    SR7001 controller（3D）
    SR7002 controller（2.5D）

    SR7002 controller（2.5D）
    SR7002 controller（3D）

    SR7002 controller（3D）
    SR9001(3D)

    SR9001(3D)
