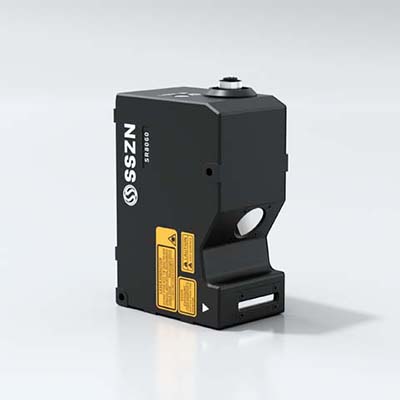

SR8060

SR8060

X-axis width: 26-36mm

Scanning speed: 3200-67000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial

Join for comparison

Favorites Saved to favorites

SR8060

SR8060

SR8060

Compliant with CE/KC/FCC Standards

Product Specifications


Model	SR8060
Reference distance (CD)	60 mm
Z-axis height (FS)	18 mm
X-axis width - Near-end	26 mm
X-axis width - Reference distance	31 mm
X-axis width - far end	36 mm
Light source wavelength	405 nm
Laser Class	2M
Laser output power	10 mW
Z-axis repeatability	0.2 μm
X-axis repeatability	5 μm
X-axis data interval	12 μm
Z-axis linearity	±0.02 % F.S.
Number of X-axis contour points	3200
Scanning speed	3200-67000 HZ
Weight	650 g
Size	123.58455 mm
Operating temperature	0~50 ℃
Storage temperature	-20~70 ℃
Operating voltage	24VDC±10%
Communication methods	1 × RS-232 port; 1 × 100Base-TX / 1000Base-T Ethernet port
Shell material	aluminum alloy

Downloads

SinceVision-SR8060 Installation diagram

SinceVision-SR8060 Installation diagram

PDF / 1.18MB

Product Specifications

Add to Download List Share file link

SinceVision-SR8060 Parameter

SinceVision-SR8060 Parameter

PDF / 177.86KB

Product Specifications
