Front Page Industrial Sensors 3D Laser Profiler SR Series SR7000 Series SR71600
Product Specifications
Accessories
Downloads
Case Studies
Related Products

Category

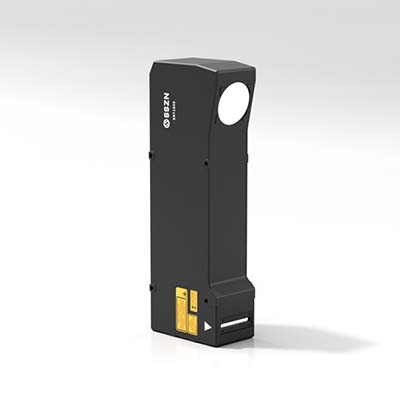

SR71600

SR71600

X-axis width: 1000-1600mm

Scanning speed: 100-2200Hz

Z-axis linearity: ±0.05% F.S.

Light source wavelength: 450nm

Laser grade: 3R

Request a trial Join for comparison

Favorites Saved to favorites

  • SR71600
  • SR71600
  • SR71600

    • Compliant with CE/KC/FCC Standards

    Product Specifications
    Model SR71600
    Reference distance (CD) 1600 mm
    Z-axis height (FS) 1500 mm
    X-axis width - Near-end 1000 mm
    X-axis width - Reference distance 1600 mm
    X-axis width - far end 1600 mm
    Light source wavelength 450 nm
    Laser Class 3R
    Laser output power 50 mW
    Z-axis repeatability 100 μm
    X-axis repeatability 150 μm
    X-axis data interval 500 μm
    Z-axis linearity ±0.005 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 100-2200 HZ
    Weight 1500 g
    Size 290.5*100*59 mm
    Operating temperature 0~50℃ ℃
    Storage temperature -20~70℃ ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy

    Accessories

    SCB-HCAM-HB1

    SCB-HCAM-HB1
    SCB-HCAM-HR1

    SCB-HCAM-HR1
    SR7001 controller（2.5D）

    SR7001 controller（2.5D）
    SR7001 controller（3D）

    SR7001 controller（3D）
    SR7002 controller（2.5D）

    SR7002 controller（2.5D）
    SR7002 controller（3D）

    SR7002 controller（3D）
    SR9001(3D)

    SR9001(3D)
