Category

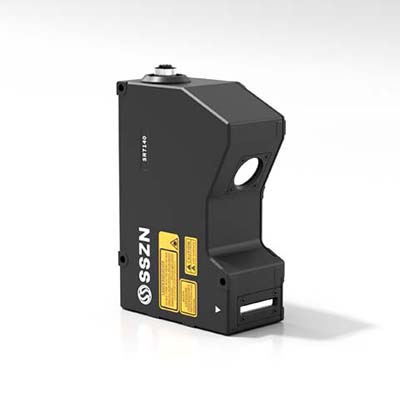

SR7140

SR7140

X-axis width: 81-105mm

Scanning speed: 1250~10000Hz

Z-axis linearity: ±0.025% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial

Join for comparison

Favorites Saved to favorites

SR7140

SR7140

SR7140

Compliant with CE/KC/FCC Standards

Product Specifications


Model	SR7140
Reference distance (CD)	140 mm
Z-axis height (FS)	47 mm
X-axis width - Near-end	81 mm
X-axis width - Reference distance	93 mm
X-axis width - far end	105 mm
Light source wavelength	405 nm
Laser Class	2M
Laser output power	10 mW
Z-axis repeatability	0.5 μm
X-axis repeatability	8 μm
X-axis data interval	30 μm
Z-axis linearity	±0.025 % F.S.
Number of X-axis contour points	3200
Scanning speed	1250-10000 HZ
Weight	850 g
Size	14648.393.2 mm
Operating temperature	0~50 ℃
Storage temperature	-20~70 ℃
Operating voltage	24VDC±10%
Communication methods	1 × 100Base-TX / 1000Base-T Ethernet port
Shell material	aluminum alloy

Downloads

SinceVision-SR7140 Installation diagram

SinceVision-SR7140 Installation diagram

PDF / 284.86KB

Product Specifications

Add to Download List Share file link

SinceVision-SR7140 Parameter

SinceVision-SR7140 Parameter

PDF / 208.99KB

Product Specifications
