Category

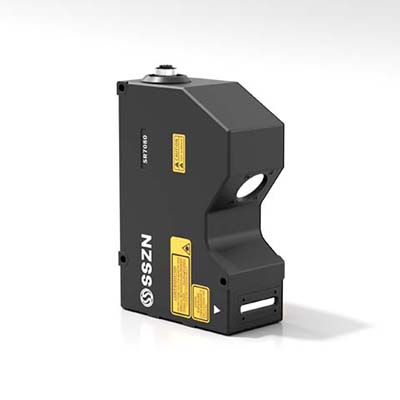

SR7080

SR7080

X-axis width: 57.5-68mm

Scanning speed: 2500~10000Hz

Z-axis linearity: ±0.025% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial

Join for comparison

Favorites Saved to favorites

SR7080

SR7080

SR7080

Compliant with CE/KC/FCC Standards

Product Specifications


Model	SR7080
Reference distance (CD)	80 mm
Z-axis height (FS)	24 mm
X-axis width - Near-end	57.5 mm
X-axis width - Reference distance	60 mm
X-axis width - far end	68 mm
Light source wavelength	405 nm
Laser Class	2M
Laser output power	10 mW
Z-axis repeatability	0.4 μm
X-axis repeatability	5 μm
X-axis data interval	20 μm
Z-axis linearity	±0.025 % F.S.
Number of X-axis contour points	3200
Scanning speed	2500-10000 HZ
Weight	730 g
Size	143.54893.2 mm
Operating temperature	0~50 ℃
Storage temperature	-20~70 ℃
Operating voltage	24VDC±10%
Communication methods	1 × 100Base-TX / 1000Base-T Ethernet port
Shell material	aluminum alloy

Downloads

SinceVision-SR7080 Installation diagram

SinceVision-SR7080 Installation diagram

PDF / 1.14MB

Product Specifications

Add to Download List Share file link

SinceVision-SR7080 Parameter

SinceVision-SR7080 Parameter

PDF / 173.51KB

Product Specifications

Add to Download List Share file link
