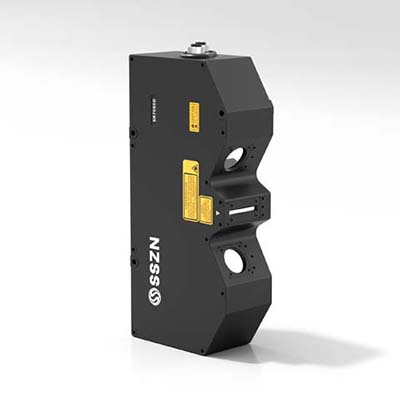

SR7060D

SR7060D

X-axis width: 26-29mm

Scanning speed: 2500~10000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 405nm

Laser grade: 2M

Request a trial

Join for comparison

Favorites Saved to favorites

SR7060D

SR7060D

SR7060D

Compliant with CE/KC/FCC Standards

Product Specifications


Model	SR7060D
Reference distance (CD)	57 mm
Z-axis height (FS)	10.5 mm
X-axis width - Near-end	26 mm
X-axis width - Reference distance	28 mm
X-axis width - far end	29 mm
Light source wavelength	405 nm
Laser Class	2M
Laser output power	10 mW
Z-axis repeatability	0.2 μm
X-axis repeatability	2.5 μm
X-axis data interval	10 μm
Z-axis linearity	±0.02 % F.S.
Number of X-axis contour points	3200
Scanning speed	2500-10000 HZ
Weight	1500 g
Size	228.510793.2 mm
Operating temperature	0~50 ℃
Storage temperature	-20~70 ℃
Operating voltage	24VDC±10%
Communication methods	1 × RS-232 port; 1 × 100Base-TX / 1000Base-T Ethernet port
Shell material	aluminum alloy

Downloads

SinceVision-SR7060D Installation diagram

SinceVision-SR7060D Installation diagram

PDF / 798.12KB

Product Specifications

Add to Download List Share file link

SinceVision-SR7060D Parameter

SinceVision-SR7060D Parameter

PDF / 242.27KB

Product Specifications

Add to Download List Share file link
