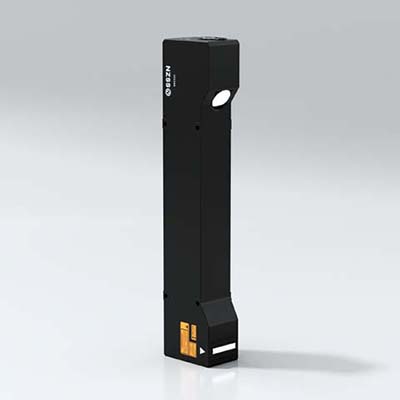

SR5320

SR5320

X-axis width: 360-640mm

Scanning speed: 2500-67000Hz

Z-axis linearity: ±0.02% F.S.

Light source wavelength: 450nm

Laser grade: 3R

Request a trial Join for comparison

Favorites Saved to favorites

  • SR5320
  • SR5320
  • SR5320

    • Compliant with CE/KC/FCC Standards

    Product Specifications
    Model SR5320
    Reference distance (CD) 500 mm
    Z-axis height (FS) 510 mm
    X-axis width - Near-end 360 mm
    X-axis width - Reference distance 470 mm
    X-axis width - far end 640 mm
    Light source wavelength 450 nm
    Laser Class 3R
    Laser output power 50 mW
    Z-axis repeatability 7.5 μm
    X-axis repeatability 50 μm
    X-axis data interval 200 μm
    Z-axis linearity ±0.02 % F.S.
    Number of X-axis contour points 3200
    Scanning speed 2500-67000 HZ
    Weight 1900 g
    Size 460*96*62 mm
    Operating temperature 0~50 ℃
    Storage temperature -20~70 ℃
    Operating voltage 24VDC±10%
    Communication methods 1 × 100Base-TX / 1000Base-T Ethernet port
    Shell material aluminum alloy

    Accessories

    SCB-HCAM-HB2

    SCB-HCAM-HB2
    SCB-HCAM-HB2Z

    SCB-HCAM-HB2Z
    SCB-HCAM-HR2

    SCB-HCAM-HR2
    SR7001 controller（2.5D）

    SR7001 controller（2.5D）
    SR7001 controller（3D）

    SR7001 controller（3D）
    SR7002 controller（2.5D）

    SR7002 controller（2.5D）
    SR7002 controller（3D）

    SR7002 controller（3D）
    SR9001(3D)

    SR9001(3D)
