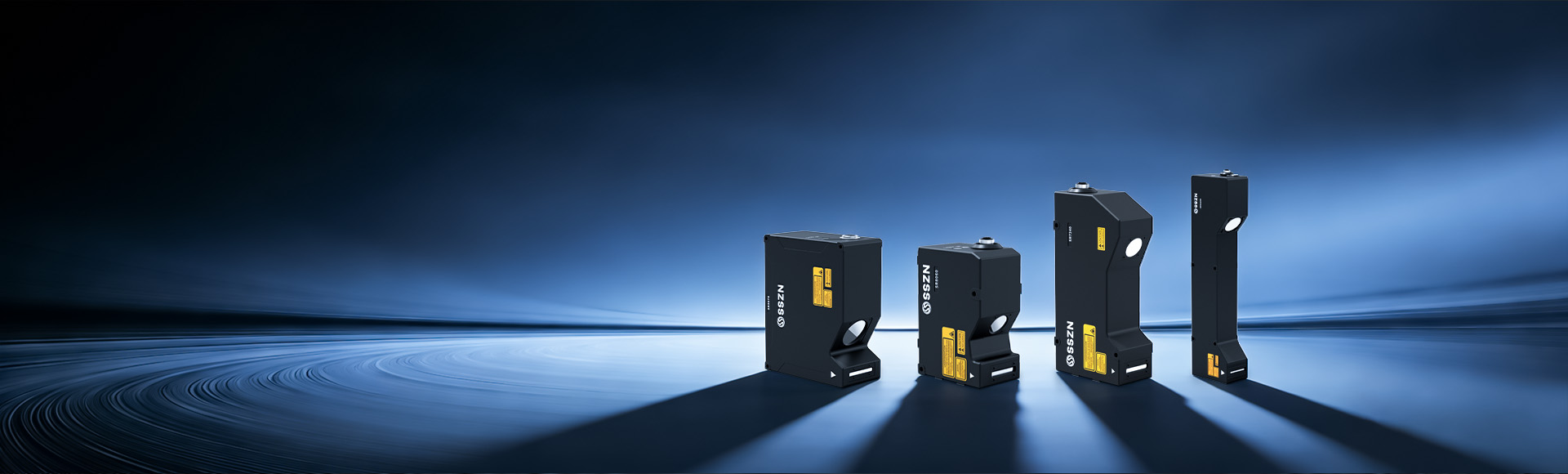

SR Series - High-Speed Precision 3D Sensors
Featuring industry-leading 67kHz scanning speeds and up to 6400 X-axis contour points, our sensors deliver sub-micron precision for automated 3D surface inspection. IP67-rated and ideal for lithium battery, semiconductor, automotive, and manufacturing industries.
Category
Product Matrix
Product Selection
| Model | Reference distance (CD) (mm) | Z-axis height (FS) (mm) | X-axis width - Reference distance (mm) | Z-axis repeatability (μm) | Number of X-axis contour points | Scanning speed (HZ) | Product Status | Compare | Favorites |
|---|---|---|---|---|---|---|---|---|---|
| SR9160 | 160 | 90 | 99 | 1.5 | 6400 | 1500-13000 | Published |
|
|
| SR9080 | 80 | 35 | 52 | 0.6 | 6400 | 1500-13000 | Published |
|
|
| SR9061 | 60 | 14.5 | 27 | 0.2 | 6400 | 1500-13000 | Published |
|
|
| SR9060 | 60 | 24 | 39 | 0.4 | 6400 | 1500-13000 | Published |
|
|
| SR9041 | 42 | 8.2 | 19 | 0.1 | 6400 | 1500-13000 | Published |
|
|
| SR9040 | 40 | 6.6 | 17 | 0.1 | 6400 | 1500-13000 | Published |
|
|
| SR8062 | 60 | 8.5 | 17 | 0.15 | 3200 | 2500-67000 | Published |
|
|
| SR8060H | 69 | 6 | 13 | 0.2 | 3200 | 10000-67000 | Published |
|
|
| SR8060K | 60 | 7.5 | 28 | 0.2 | 3200 | 3200-67000 | Published |
|
|
| SR8060 | 60 | 18 | 31 | 0.2 | 3200 | 3200-67000 | Published |
|
|
Accessories
File
SinceVision-3D Laser Profiler Product Catalog 02V1 Hot New
PDF / 5.95MB
Product Manual
Download Now
Add to Download List
SinceVision-SR Series 3D Camera-Hardware User Manual
ZIP / 6.8MB
Technical Guide
SinceVision-SR Series 3D Camera-Communication Library Reference Manual
ZIP / 5.54MB
Technical Guide
SinceVision-SR Series 3D camera-Software User Manual
ZIP / 26.13MB
Technical Guide
SinceVision-SR Series 3D Camera-Q&A on Image Capture in Insworks Software
RAR / 27.7MB
Technical Guide
SinceVision-SR Series 3D camera-Quick Start Guide
ZIP / 5.16MB
Technical Guide
SinceVision-3D camrea-Wiring Guide
ZIP / 1.2MB
Technical Guide
SinceVision-3D File Format Transformation Hot
ZIP / 48.38MB
Product Software
SinceVision -3D Laser Profiler-Calibration certificate
ZIP / 6.87MB
Certifications
SinceVision -3D Laser Profiler-Export Certification
ZIP / 79.5MB
Certifications
SinceVision -3D Laser Profiler-Testing Materials
ZIP / 9.92MB
Certifications
SinceVision-SR7050 installation diagram
PDF / 899.74KB
Product Specifications
SinceVision-3D Laser Profiler Product Catalog 02V1 Hot New
PDF / 5.95MB
Product Manual
SinceVision-3D File Format Transformation Hot
ZIP / 48.38MB
Product Software
SinceVision-SR Series 3D Camera-Hardware User Manual
ZIP / 6.8MB
Technical Guide
SinceVision-SR Series 3D Camera-Communication Library Reference Manual
ZIP / 5.54MB
Technical Guide
SinceVision-SR Series 3D camera-Software User Manual
ZIP / 26.13MB
Technical Guide
SinceVision-SR Series 3D Camera-Q&A on Image Capture in Insworks Software
RAR / 27.7MB
Technical Guide
SinceVision-SR Series 3D camera-Quick Start Guide
ZIP / 5.16MB
Technical Guide
SinceVision-3D camrea-Wiring Guide
ZIP / 1.2MB
Technical Guide
SinceVision-SR7050 installation diagram
PDF / 899.74KB
Product Specifications
SinceVision-SR7060D Installation diagram
PDF / 798.12KB
Product Specifications
SinceVision-SR7060 Installation diagram
PDF / 203.84KB
Product Specifications
SinceVision-SR7080 Installation diagram
PDF / 1.14MB
Product Specifications
SinceVision-SR8020 Installation diagram
ZIP / 616.6KB
Product Specifications
SinceVision-SR7900 installation diagram
PDF / 543.42KB
Product Specifications
SinceVision-SR7400 Installation diagram
PDF / 1.12MB
Product Specifications
SinceVision-SG5001 installation diagram
PDF / 223.6KB
Product Specifications
SinceVision -3D Laser Profiler-Calibration certificate
ZIP / 6.87MB
Certifications
SinceVision -3D Laser Profiler-Export Certification
ZIP / 79.5MB
Certifications
SinceVision -3D Laser Profiler-Testing Materials
ZIP / 9.92MB
Certifications
