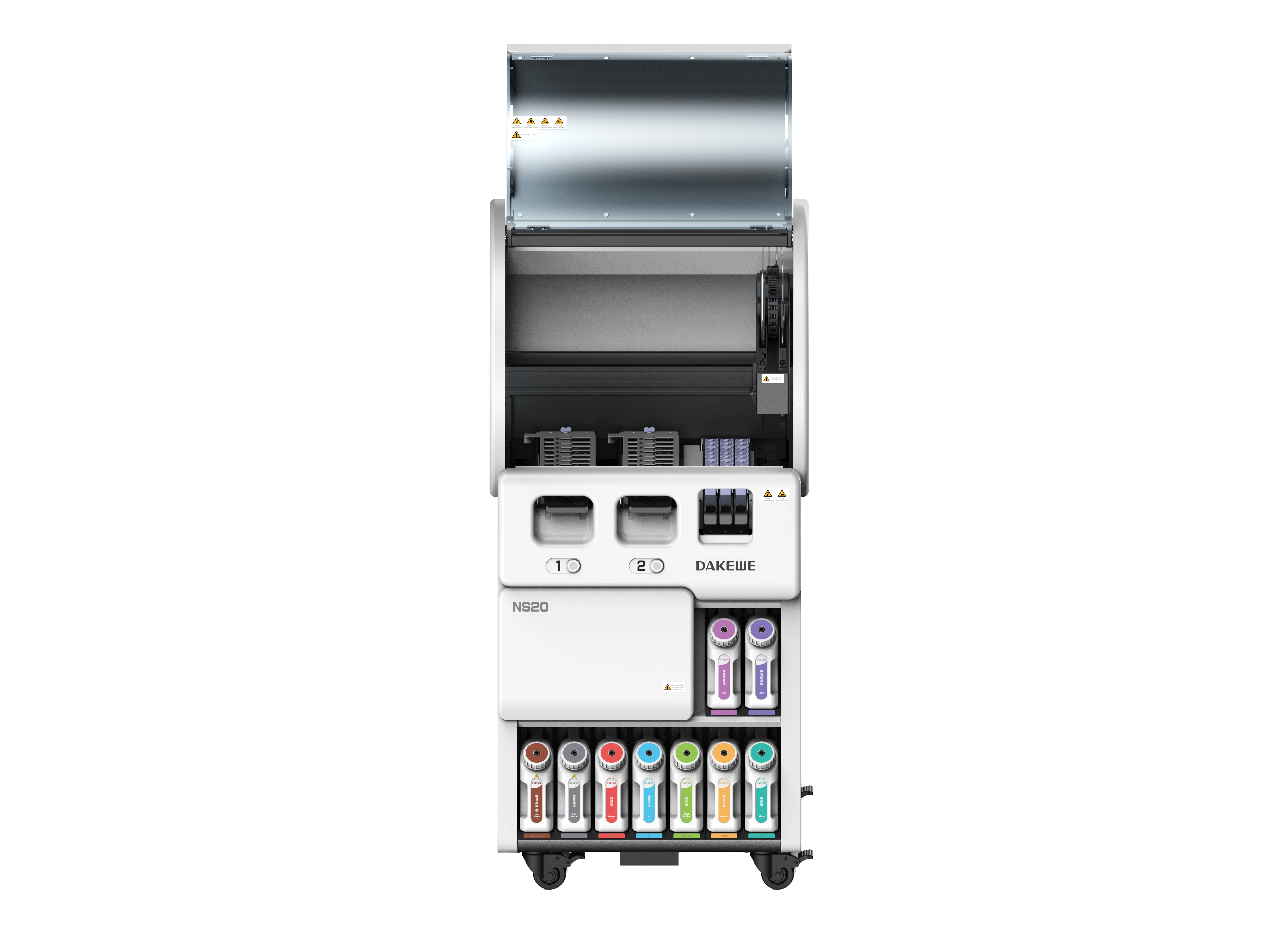

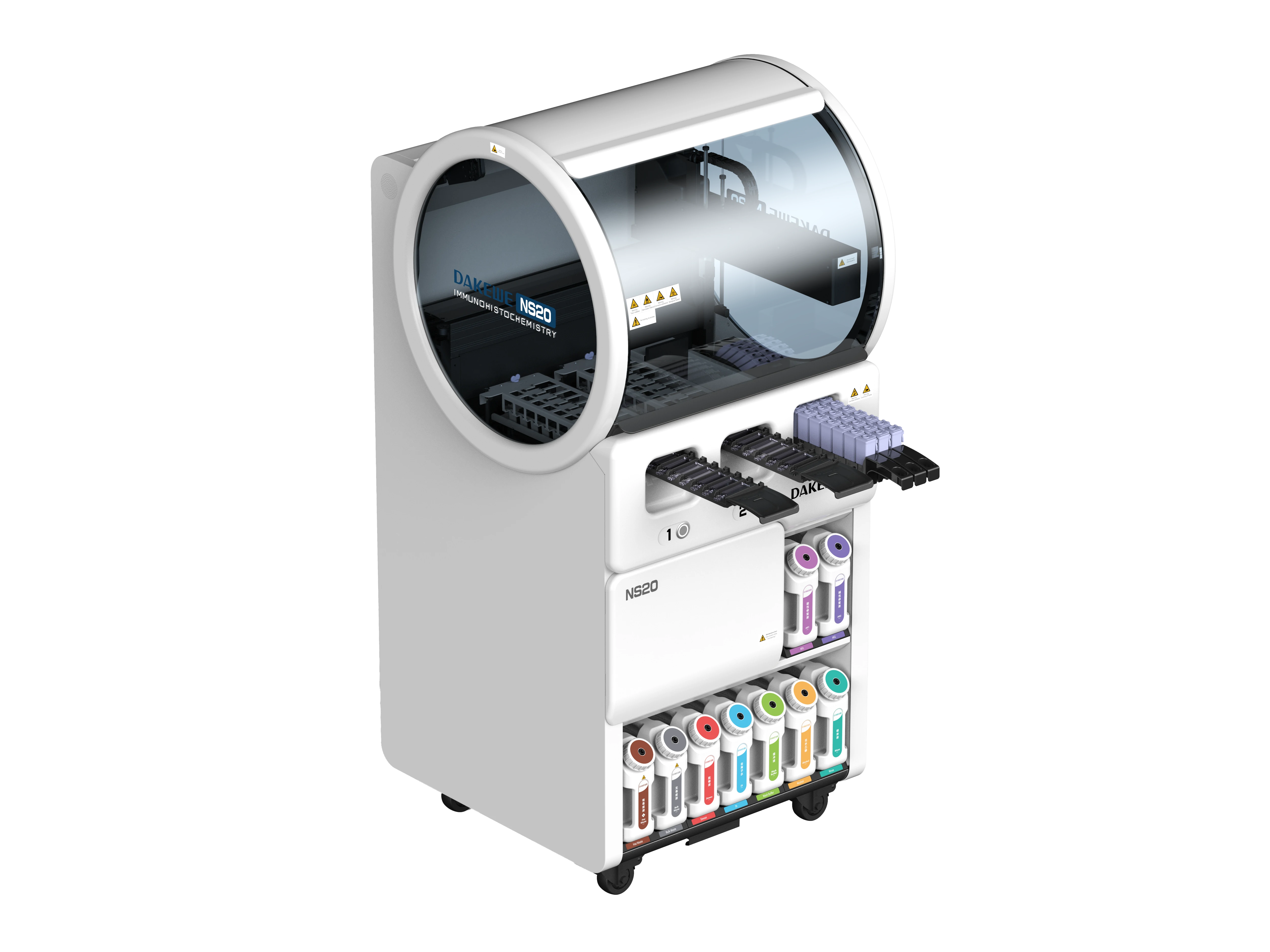

PathDR.™ NS20
IHC stainer
Trustworthy from beginning to the end.
For In Vitro Diagnosis use.
Features
Efficient
Time efficient —
Reduced turnaround time with the effective dual robotic arms, allowing for completing a run with 40 slides in 2.5 hours.
With an addition overnight run, up to 160 slides can be processed within 24 hours.
Reagent efficient —
Accurate dosage and temperature control ensure high performance.
Low waste even with rinsing enabled, decreasing the hazzle to dispose of wastes.
Individual heating — Temperature on every SSA can be set Individually up to 110 ℃ to fit the staining protocols with more flexibility.
Ensured quality
Tracked cover lids —
Dakewe cover lid is designed for economical reagent consumption.
Each cover lid has a unique DataMatrix recognizable by the stainer to track usage, contributing to optimal staining performance.
Clear and fresh outcome
Rinsing — Engineered rinsing step reduces non-specific background and coffee-ring effect, offering a clear and fresh slide.
Ergonomic

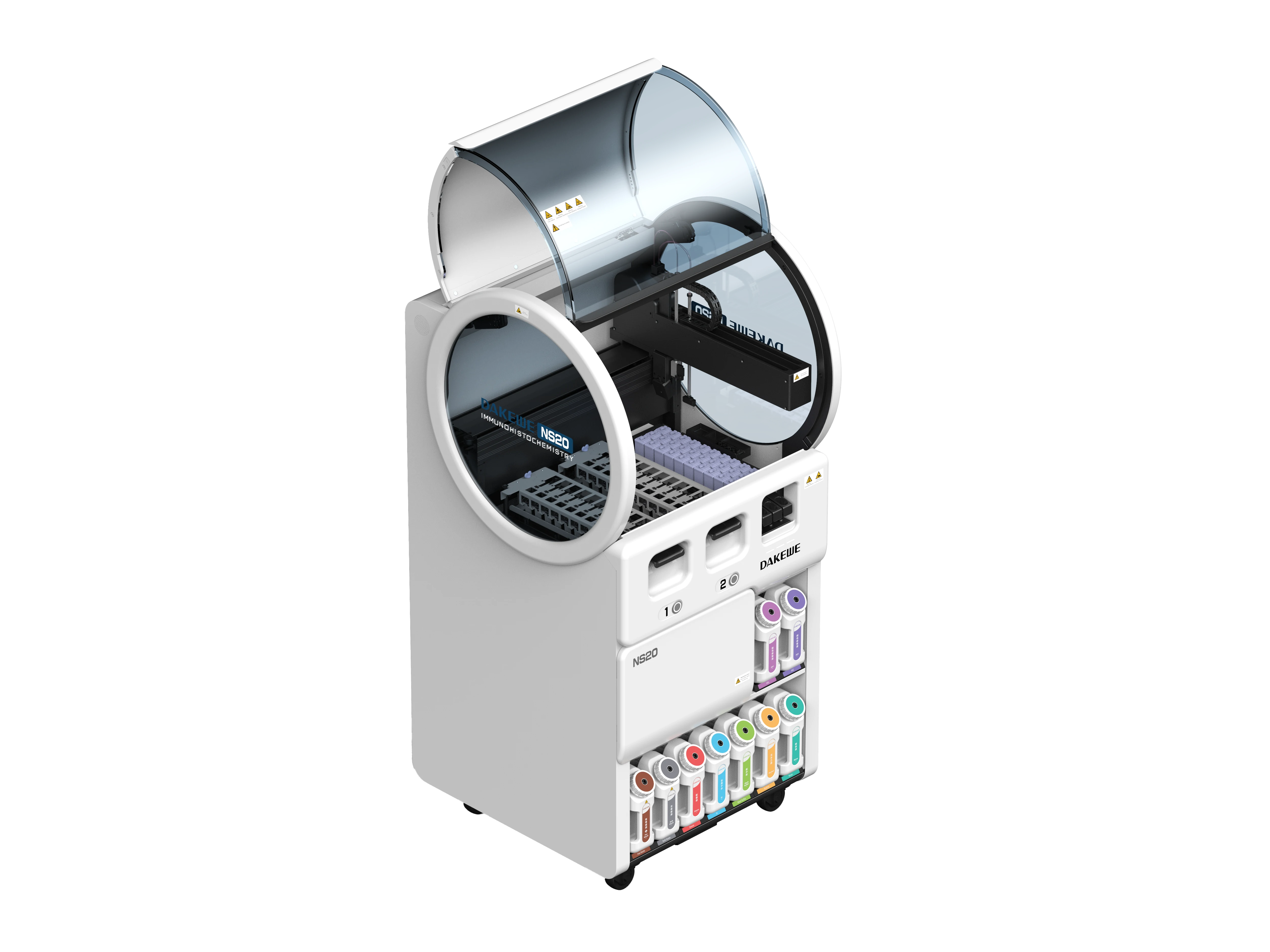

Smooth folding cover — Clear cover providing straightforward observation an be folded and unfolded effortlessly to open and close.
Specifications
| Dimensions (W × D × H) | 715 × 808 × 1547 mm |
|---|---|
| Weight | Approx. 220 kg |
| Power | 100-240 VAC, 50/60 Hz, 800 VA |
| Process | Fully automated from baking till counter stain |
| Techniques | IHC, ISH, ICC, FISH, double stain, multi-plex stain |
| Slide capacity | 10 slides/tray, 2 trays Finished slides trays can be reloaded continuously |
| Tumaround time | 2.5 - 3.5 hours per run |
| SSA temperature | Ambient to 110°C, ±1°C |
| Bulk reagent container capacity | 2 L |
| Reagent container capacity | 6 ml, 7 ml, 30 ml |
| Reagent container quantity | 30 |
| Waste container capacity | 2 L, hazardous and non-hazardous separate |
