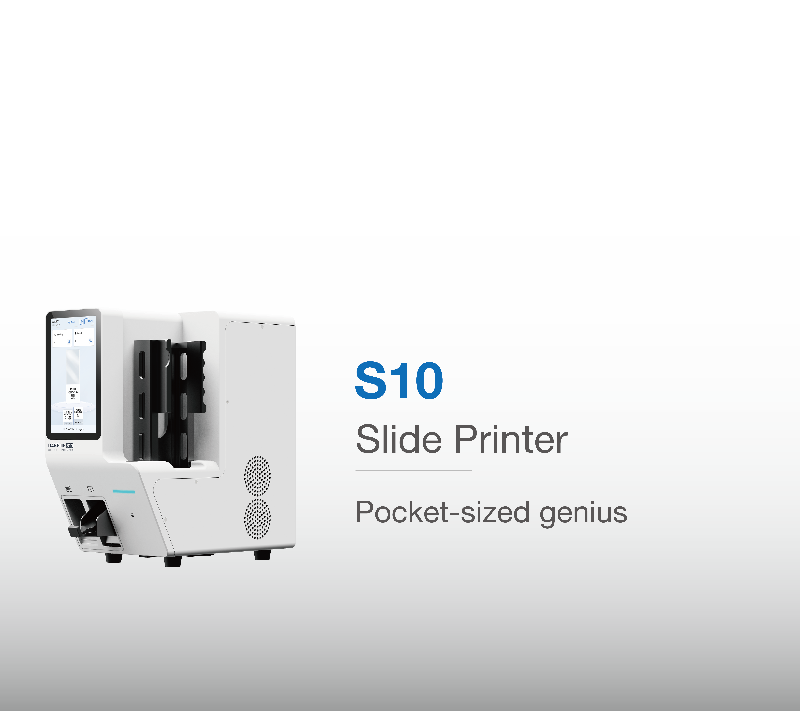

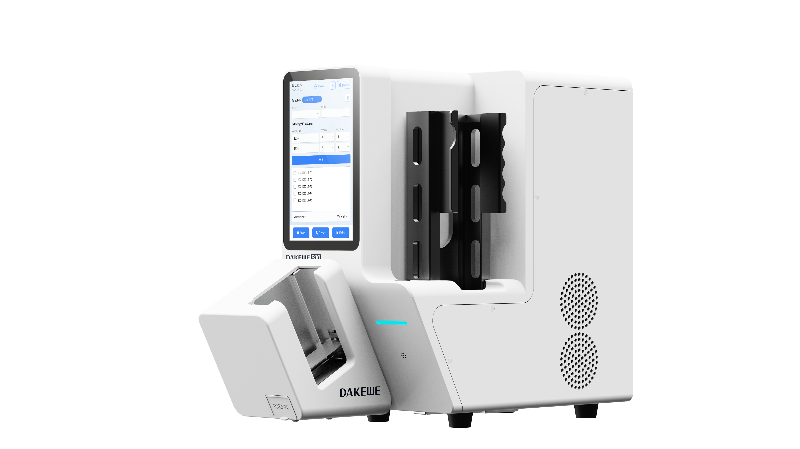

SurePrint S10
Slide Printer

Pocket-sized genius

Features

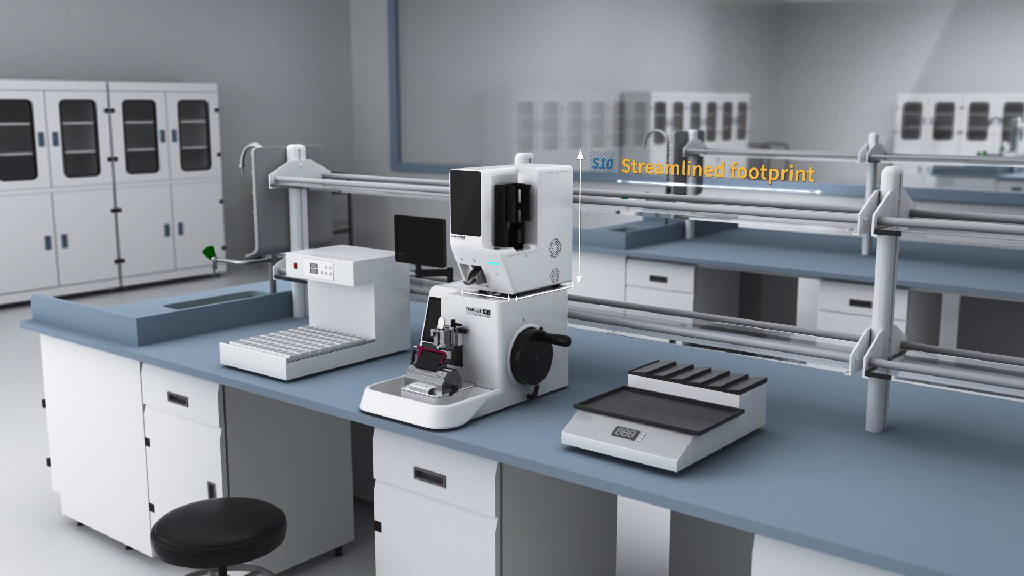

Maximized compactness

Maximized compactness

Small and smart like a smart phone — Got a space for a smart phone?

Then there is a place for S10!

With 115 × 145 mm minimum distance between feet, SurePrint S10 can effortlessly fit itself in laboratories.

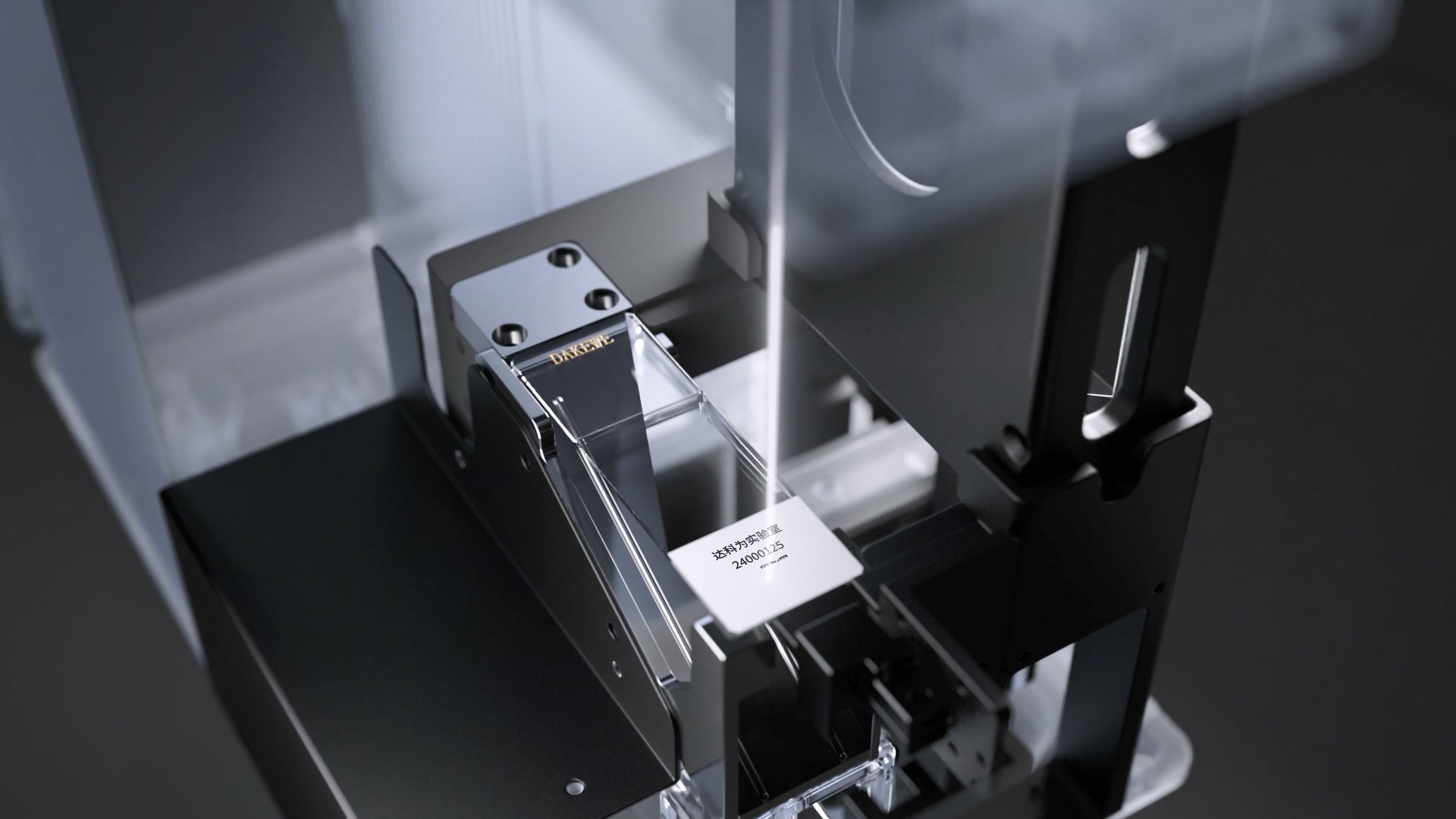

UV laser printing

UV laser printing

Fast printing — Provide an impressive throughput of 720 slides printed per hour.

Crips printing — 2,500 dpi, high resolution printing brings high scan rate and precise identification.

Permanent printing — Permanent marks remain crisp and dark, and resist processing solvents, heat, and scratch, providing consistent specimen traceability.

Hazzle-free printing — UV laser marking eliminates the demand for printing consumables such as ribbons, print heads, and ink cartridges, and hence the relevant maintenance.

Load and unload as needed

Load and unload as needed

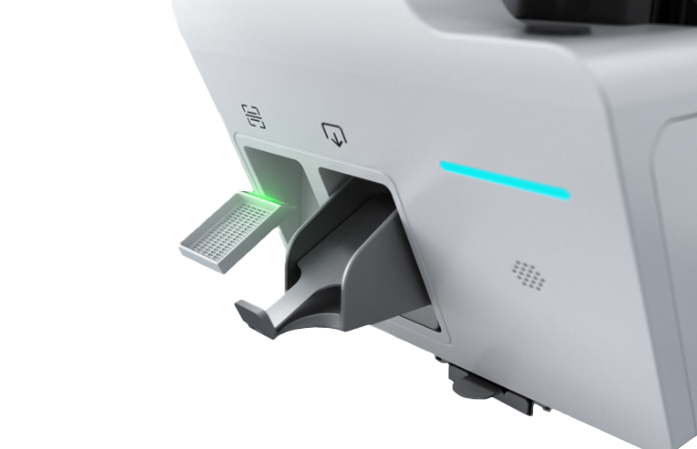

On-demand printing — Get printed slides immediately from the front output.

Batch printing — Batch output stores up to 50 printed slides.

Print with tissue — Accessory for printing slides with tissue available for easily handling IHC control slides.

Opt for what the lab needs

Opt for what the lab needs

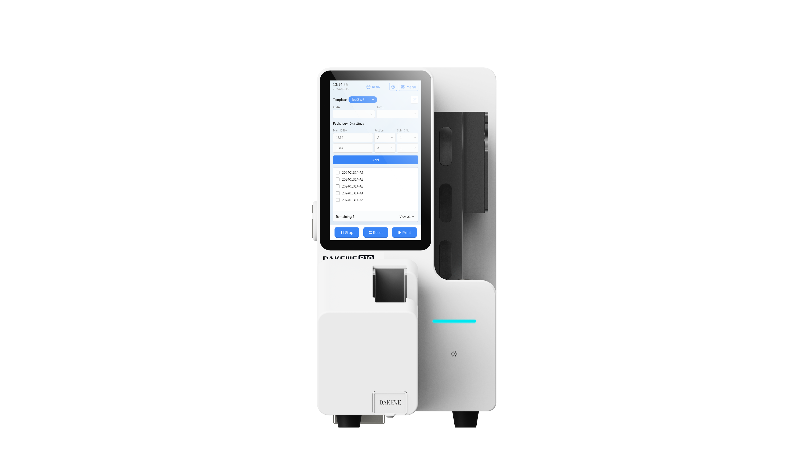

Connectivity — Operate directly on the touch screen as a standalone printer, or connect it to a computer or various LIS.
Built-in scanner allowing for bi-directional communication with LIS without a extra scanner required.

Simple/advance mode — Optimized user interface in simple/advance mode suitable for both geeks and pragmatists.

Multi-to-one control — Integrate SurePrint S10 to your intranet to receive print requests from multiple computers for optimized equipment utilization.

Specifications

Dimensions (W × D × H ) On-demand output: 175 × 335 × 340 mm
Batch output: 175 × 440 × 340 mm
Weight On-demand output: approx. 13.5 kg
Batch output: approx. 15 kg
Voltage and frequency 100 - 240 VAC, 50/60 Hz
Power 170 VA
Printing technology Non-contact laser marking technology
Print content Numbers, characters in multiple languages, symbols, 1D/ 2D barcodes, graphics
Print speed Up to 2 sec/slide, depending on print content
Load capacity Up to 150 slides in 1 hopper; hopper for tissue-attached slide available
Output capacity On-demand output: Up to 10 slides
Batch output: 50 slides
Print resolution Max. 2500 dpi
Slide dimensions (74.8-76.0) × (24.8-26.0) × (0.8-1.2) mm
Air purification Built-in air purification system
System interfaces LIS, HIS, PIS, PACS
