Features
Organized
Compact — Fits neatly into grossing stations and labs with presious space.
Continuous output —
Special-engineered cassette output rack allows for non-stop printing, never stop the workflow.
Intuitive handling and viewing of printed cassettes.
Omnipotent
Omnipotent to cassette types —

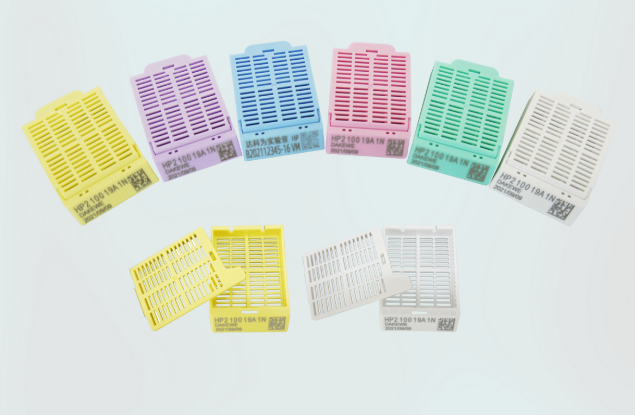

Capable to print all regular cassette configurations:
√ Front or back hinged
√ With or without lid
√ One-piece or separate
Omnipotent to lab workflow —
Simple operation with friendly UI, yet powerful to adapt to various lab requirements
Easy integration with various Laboratory Information System (LIS)
Omnipotent to print contents —
Flexible template editing to provide layout fulfilling every need.
Rich content including multiple barcode formats, languages and even graphics.
Optimal results
Crisp marks — Great barcode scannability thanks to 2,500 dpi high resolution.
Permanent outcome — Permanent marks resist processing solvents, heat and scratch.
Save from consumables —
No more ink cartridges, ribbons, light bulbs or print heads
Eliminates the costs and downtime associating with these consumables。
Specifications
| Dimensions (W × D × H) | 332 × 390 × 440 mm, ±5% |
|---|---|
| Weight | 25 kg, ±5% |
| Voltage and frequency | 100 - 240 VAC, 50/60 Hz |
| Power | 210 VA |
| Printing technology | Non-contact laser marking technology |
| Print content | Alphanumeric, characters in various languages, barcodes, graphics |
| Printing speed | Up to 2.5 sec/cassette (depending on print content) |
| Cassette types | With/without lid attached, one-piece cassette |
| Cassette angles | Both 45° and 35° |
| Print resolution | Max. 2500 dpi |
| Loading capacity | Up to 80 cassettes in 1 hopper |
| Air purification | Built-in purification system |
