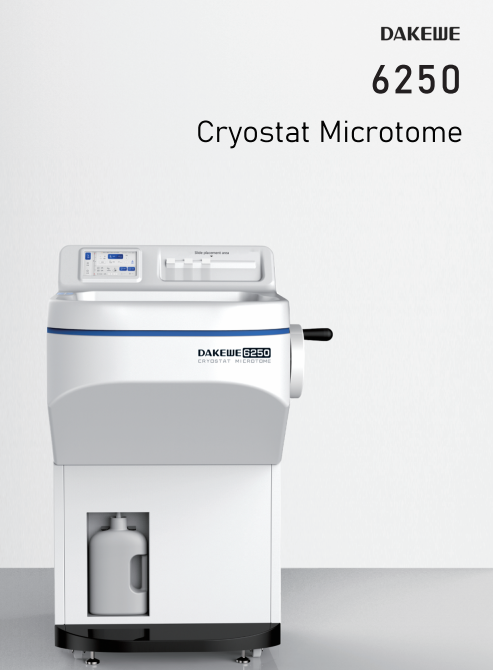

6250
Cryostat Microtome

Effective cooling, stable sectioning

Features

Reliable section quality

Reliable section quality

Exquisite mechanisms — Driven by precise motors and durable guide rails, Dakewe 6250 cryostat produces uniform section continuously and fears not heavy workload.

Applicable to all types of tissues — Works smoothly when sectioning different kinds of tissues, hard or soft, large or small.

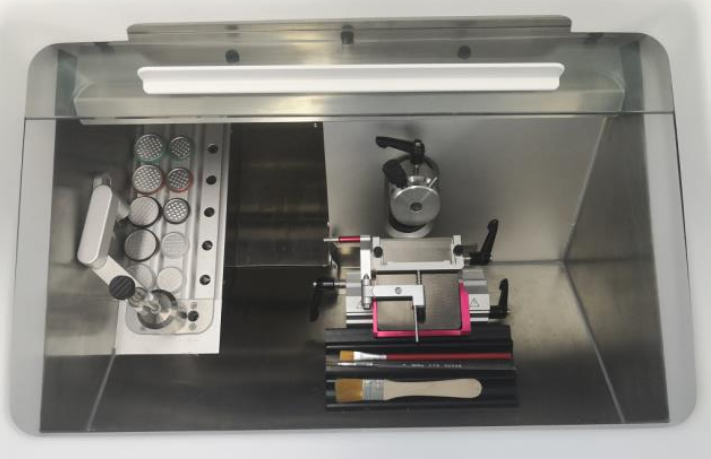

Fulfill laboratory requirements — 18 freezing stations and 2 Peltier elements on the large freezing shelf with clear number markings on the large freezing shelf aid specimen identification during sectioning.

Stable blade hold — The high-quality blade holder adapts to both high and low profile blades and has an arc design to minimize blade trembling.

Powerful compressor — Continuous sectioning is made possible thanks to the quality compressor and smart temperature control algorithm.

Relaxing user experience

Relaxing user experience

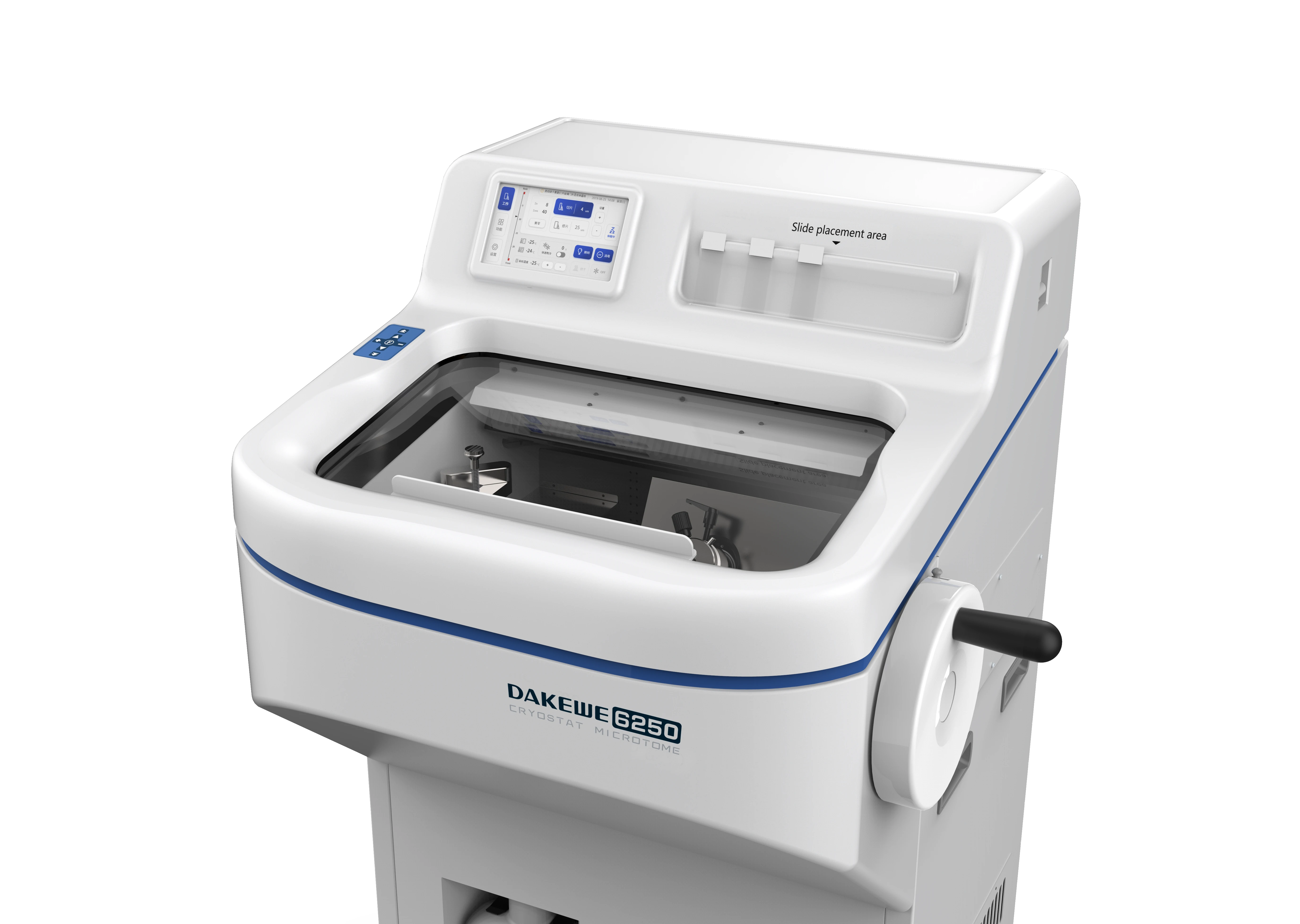

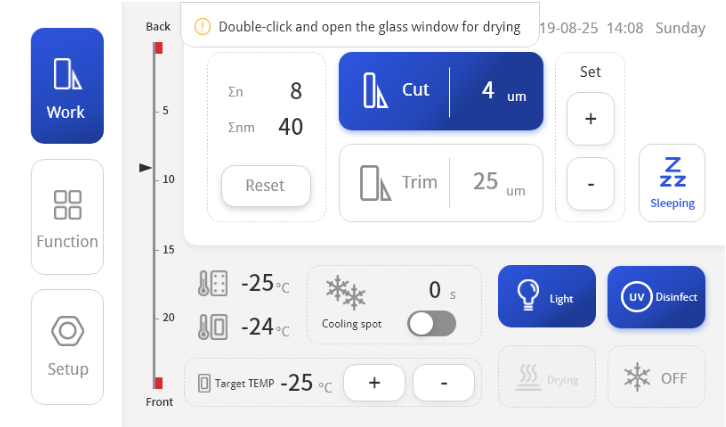

All crucial information at a glance — The large color touch screen on the 6250 cryostat allows for the display of important parameters and toggles.
A side control panel is present for convenient operation.

Hassel-free components — The heat extractor is coated with an anti-sticking layer to prevent sticking.
Anti-roll guide designed with clamp can be hold at any position flexibly.
The freezing shelf is frost-free.

Clear sight all the time — The glass window is heated to prevent frost from building up.

Innovative design, we care about you

Innovative design, we care about you

Schedule to fit your schedule — UV disinfection and defrosting can be activated as scheduled or manually to synchronize with the laboratory's routine.
Dakewe 6250 can be switched to sleep mode according to the preset schedule and thus helps to save energy.

Throughout drying — Extra drying function allows for rapid expulsion of moist in the chamber, saves the time from naturally drying and provides better drying results.

Specifications

Dimension (W × D × H, with handwheel) 780 × 700 × 1280 mm
Weight (with packaging) Approx. 120 kg
Power consumption 220 - 240 VAC, 1400 VA
110 - 127 VAC, 1200 VA
Supply voltage / frequency 220 - 240 VAC, 50 Hz
220 - 230 VAC, 60 Hz
110 - 127 VAC, 60 Hz
Section thickness range 1 - 100 μm
Trimming thickness range 1 - 600 μm
Freeze shelf 18, minimum temperature -40℃
Peltier elements 2, minimum temperature -60°C(±5℃)
