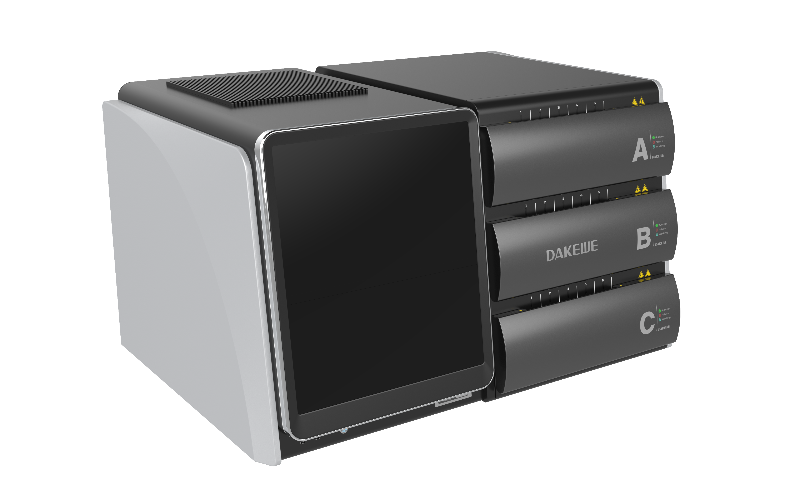

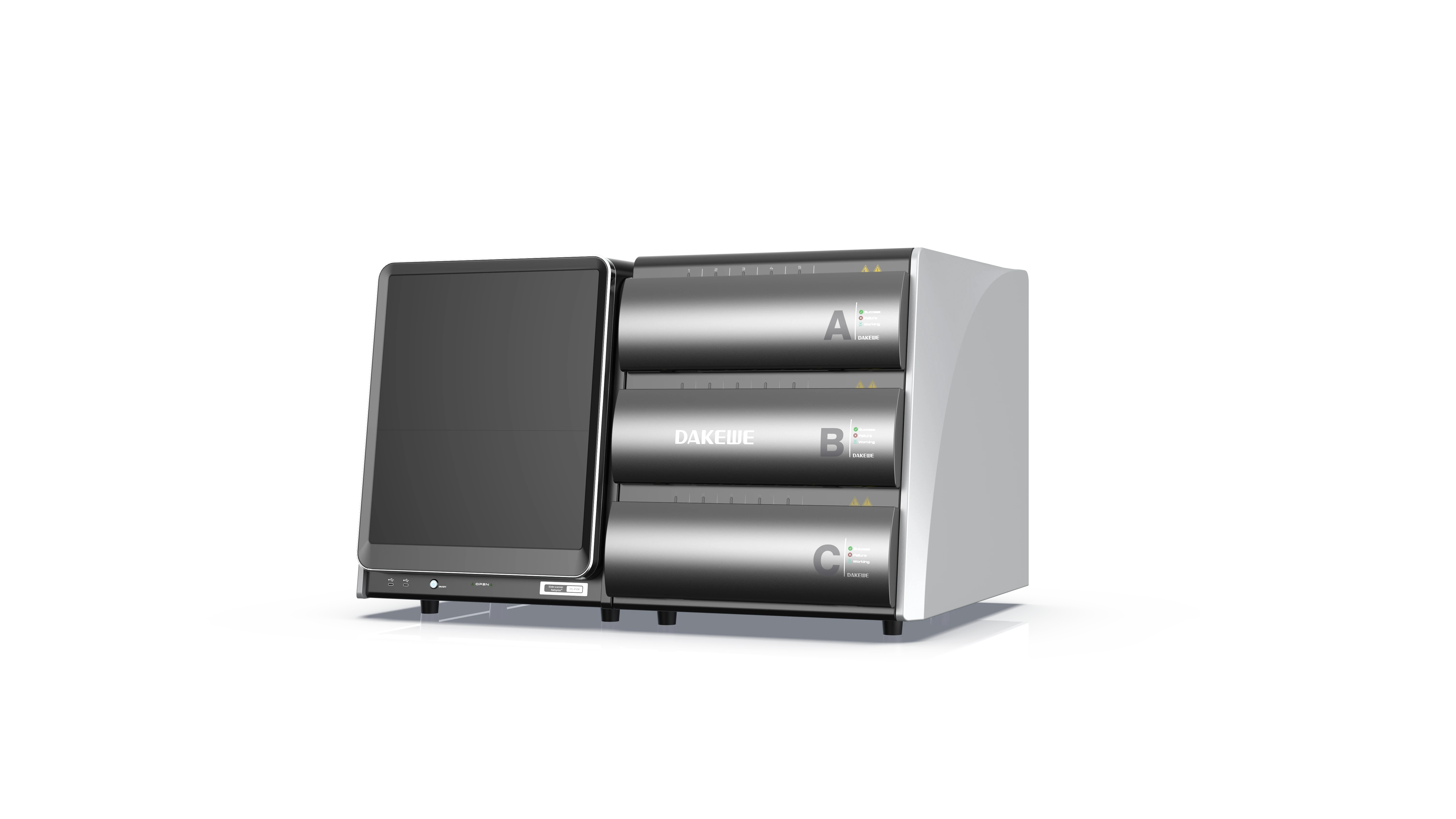

Pathpilot™ DS450R
Digital Scanner (Coming soon)
Ultra fast scanning with 450-slide capacity.
For research use only. Not for use in diagnostic procedures.
Specifications
| Dimensions (W × D × H) | 930 × 668 × 545 mm |
|---|---|
| Weight | Approx. 125 kg |
| WSIs storage | 1000 WSIs (2000 or 4000 WSIs optional) |
| Compatible WSI formats | DICOM / TIFF / SVS / JPEG / BMP / PNG |
| Z-stacking | Yes |
| Auto focus | Yes |
| Slide capacity | Up to 450 slides / 15 racks |
| Magnification | 40x equivalent |
| Resolution | 0.179 μm/pixel |
| Scan speed | 20 sec/slide, 20 mm × 50 mm |
| Barcode formats | Data Matrix, QR Code, Code 39/93/128, Codabar |
| Compatible slide racks | Dakewe CS600 racks (30-slide) Leica HistoCore Spectra workstation racks (30-slide) Sakura Prisma Stainer and Coverslipper racks (20-slide) |
